Dixon® 3501 3501

Dixon® 3501

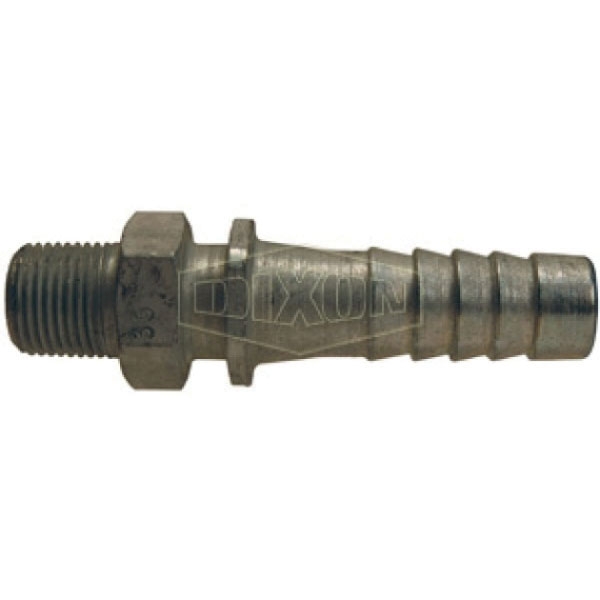

Dixon® 3500 Zinc-Plated Steel Nipple, 1/4 in Hose Barb x 1/8 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 3501
  • MPN: 3501
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • Sold As: 100/PK
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Nipple, Series: 3500, Connection Type 1: Hose Barb, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 9/16 in, 600 psi, Material Construction: Steel, Finish: Zinc-Plated, 2-1/4 in Length, 70 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      NPT
Finish      :      Zinc-Plated
Gender 2      :      Male
Hex Size      :      9/16 in
Length      :      2-1/4 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      600 psi
Series      :      3500
Shape      :      Nipple
Temperature Rating      :      70 deg F
Thread Size 2      :      1/8-27
The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting typeTo provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hoseTo construct a whip hose, connect one end of a short (3 to 10 ft) air hose to the air tool using a 3500 type steel nippleConnect the other end of the hose to the air supply using the standard quick-acting couplingThe heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connectionThe whip hose should remain permanently connected to the toolSafety Notes: For air and water service only.To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3501_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3501_TD.pdf
