Dixon® 60PT-10

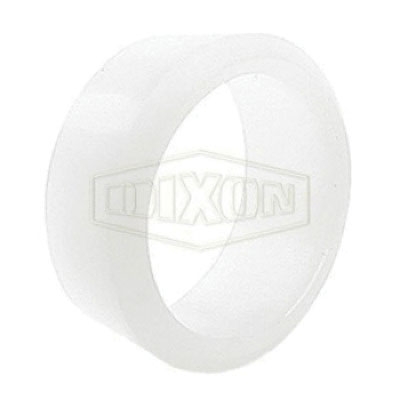

Dixon® 60PT-10 Acetal Sleeve, 5/8 in Compression

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 60PT-10
  • MPN: 60PT-10
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Sleeve, Connection Type 1: Compression, Connection Size 1: 5/8 in, Material Construction: Acetal, Dimensions: 0.22 in L, Dimension Standards: SAE J512

California residents see Prop 65 WARNINGS

Connection Size 1      :      5/8 in
Connection Type 1      :      Compression
Dimension Standards      :      SAE J512
Dimensions      :      0.22 in L
Material      :      Acetal
Material Construction      :      Acetal
Shape      :      Sleeve
Acetyl sleeves allow for standard compression fittings to be used with industrial-grades of thermoplastic tubingInstructions: No flaring, soldering or other preparation of tubing necessary to assemble.Slide nut, then sleeve onto tubing.The thread end of the nut must face out.Insert tube into the fitting.Be sure the tube is bottomed on the fitting shoulder.Assemble nut to body, and tighten hand tight.Then follow the number of appropriate wrench turns for the given size.Safety Notes: Not recommended for steel tubing. Not recommended for applications using gaseous media.Applications: Use with copper, aluminum and thermoplastic tubing
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60PT10_SS.pdf
