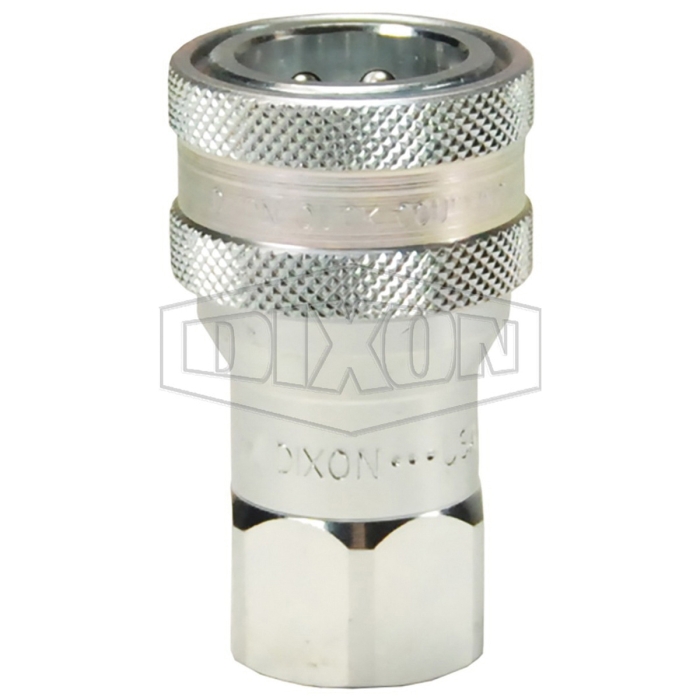

Dixon® Agricultural Ball Valve Coupler, Series: AG, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/16 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.62 in L, -40 to 259 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	1/2 in
Connection Size 2	:	1/2 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	NPTF
Dimensions	:	2.62 in L
Finish	:	Trivalent Chrome-Plated
Gender 2	:	Female
Hex Size	:	1-1/16 in
Material	:	Steel
Material Construction	:	Steel
Pressure Rating	:	4000 psi
Series	:	AG
Shape	:	Coupler
Temperature Rating	:	-40 to 259 deg F
Thread Size 2	:	1/2-14

The international standard organization (ISO) has adopted specifications regarding dimensions and interchangeability
Machined components are manufactured using solid bar stock
Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
Steel componentry is plated using RoHS compliant trivalent chrome
Steel coupler sleeves are hardened to resist deformation and maximize service life
Nitrile(Buna-N) seals are standard
Couplers have a PTFE anti-extrusion ring
Pioneer agricultural interchange
Parker/Pioneer 4000 Series
Safeway S20

Applications: Construction equipment, farm implements and most other mobile equipment

Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4AGF4-PS_CAT.pdf

Dixon® AG Series Trivalent Chrome-Plated Steel Agricultural Ball Valve Coupler
