Dixon® AG4F4 AG4F4

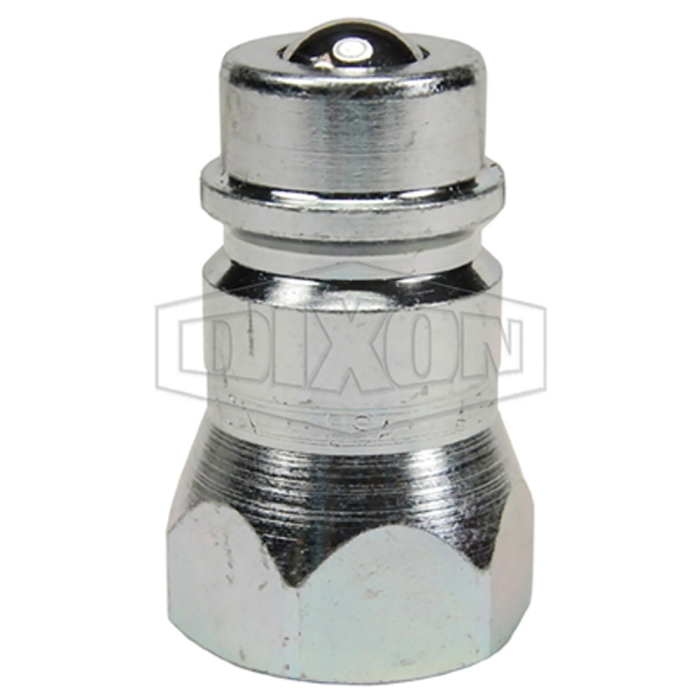

Dixon® AG Series Trivalent Chrome-Plated Steel Ball Valve Female Threaded Plug

Dixon® AG Ball Valve Plug, Quick Disconnect X NPTF, Trivalent Chrome-Plated, Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Ball Valve Plug, Series: AG, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/16 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.21 in OD x 1.95 in L, -40 to 250 deg F, For Use With: AG-Series Quick Disconnect Hydraulic Coupling

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Size 2      :      1/2 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      1.21 in OD x 1.95 in L
    Finish      :      Trivalent Chrome-Plated
    For Use With      :      AG-Series Quick Disconnect Hydraulic Coupling
    Gender 2      :      Female
    Hex Size      :      1-1/16 in
    Material      :      Steel
    Material Construction      :      Steel
    Pressure Rating      :      4000 psi
    Series      :      AG
    Shape      :      Plug
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      1/2-14
    • Machined components are manufactured using solid bar stock
    • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
    • Steel componentry is plated using RoHS compliant trivalent chrome
    • Steel nipples are hardened to provide heavy-duty performance and resist brinelling
    • Pioneer agricultural interchange
    • Parker/Pioneer 4000 Series, Faster NS/NV Series
    • Safeway Series-S20, Stucchi IR-Series

    Applications: For agricultural applications

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2AGDP_CAT.pdf
