Dixon® AM7SWIV AM7SWIV

Dixon® AM7SWIV

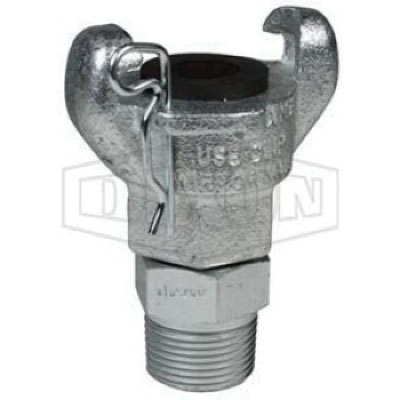

Dixon® Air King™ AM7SWIV Iron Universal Swivel End, 3/4 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: AM7SWIV
  • MPN: AM7SWIV
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Air King™ Universal Swivel End, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 3/4 in, 150 psi, Material Construction: Iron

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/4 in
Connection Type 1      :      NPT
Gender 1      :      Male
Material      :      Malleable Iron
Material Construction      :      Iron
Pressure Rating      :      150 psi
Shape      :      Swivel End
Sub Brand      :      Air King™
Interchange with other Air King™ fittings and include a heavy-duty, free-turning joint that swivels under pressure to prevent hose kinkingIncludes safety clipSupplied with rubber washer AWR4Rubber sealUse of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in placeOnly one Air King™ safety clip or wire-type retainer is required for each Air King™ universal couplingApplications: For air and water service onlySafety Notes: Air King is for air and water service only.Never use any Air King coupling for steam service.The use of an Air King safety clip or wire-type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose.Pressure rating given at ambient temperature 70 deg F.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_14MPHRL100_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM7SWIV_SS.pdf
