Dixon® 600DA-90AL 600DA-90AL

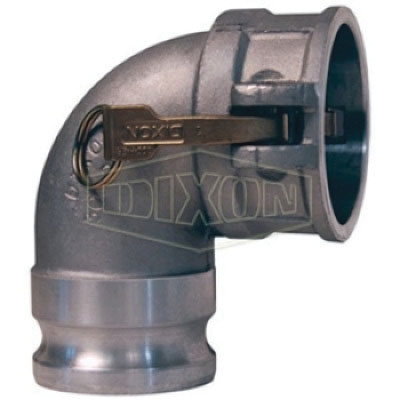

Dixon® Aluminum Cam and Groove Type DA 90 deg Elbow

Dixon® 600DA-90AL Aluminum Cam and Groove 90 deg Elbow, 6 in Male Type D x 6 in Female Type A

  • ARGPN: 600DA-90AL loading
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Cam and Groove 90 deg Elbow, Connection Type 1: Type D, Gender 1: Male, Connection Size 1: 6 in, Connection Type 2: Type A, Gender 2: Female, Connection Size 2: 6 in, 75 psi, Material Construction: Aluminum

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      6 in
    Connection Size 2      :      6 in
    Connection Type 1      :      Type D
    Connection Type 2      :      Type A
    Gender 1      :      Male
    Gender 2      :      Female
    Material      :      Aluminum
    Material Construction      :      Aluminum
    Pressure Rating      :      75 psi
    Shape      :      90 deg Elbow
    • Buna-N seal material
    • Produced to interchange with all product produced to commercial item description A-A-59326D
    • 356T6 aluminum construction

    Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!

  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.

    Applications: For use with liquids

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_150DA90AL_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_600DA90AL_TD.pdf
