Dixon® B5101S150CC-A B5101S150CC-A

Dixon® B5101S150CC-A

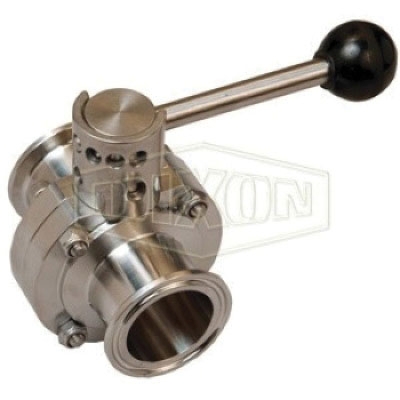

Dixon® B5101 316L Stainless Steel Butterfly Valve, 1-1/2 in Clamp, 140 psi

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: B5101S150CC-A
  • MPN: B5101S150CC-A
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Butterfly Valve, Series: B5101, Nominal Size: 1-1/2 in, Connection Type: Clamp, Actuator Type: Pull Handle, Material Construction: 316L Stainless Steel, Silicone Trim, Flow Coefficient: 80 Cv, 3.1 in Length, 3-1/2 in Width, 32 - 200 deg F, 140 psi, Packaging Quantity: 1 BX

California residents see Prop 65 WARNINGS

Actuator Type      :      Pull Handle
Connection Type      :      Clamp
Flow Coefficient      :      80 Cv
Length      :      3.1 in
Material      :      Stainless Steel
Material Construction      :      316L Stainless Steel
Nominal Size      :      1-1/2 in
Packaging Quantity      :      1 BX
Pressure Rating      :      140 psi
Product Type      :      Butterfly Valve
Series      :      B5101
Temperature Rating      :      32 - 200 deg F
Trim Material      :      Silicone
Width      :      3-1/2 in
Low resistance to flowBi-directional flowGentle to mediaCan be serviced in the fieldSelf-draining100% hydraulic tested/100% inspectedApplications: For low and medium viscosity fluids
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_B5101S150CCA_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_B5101S150CCA_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_B5101S150CCA_TD.pdf
