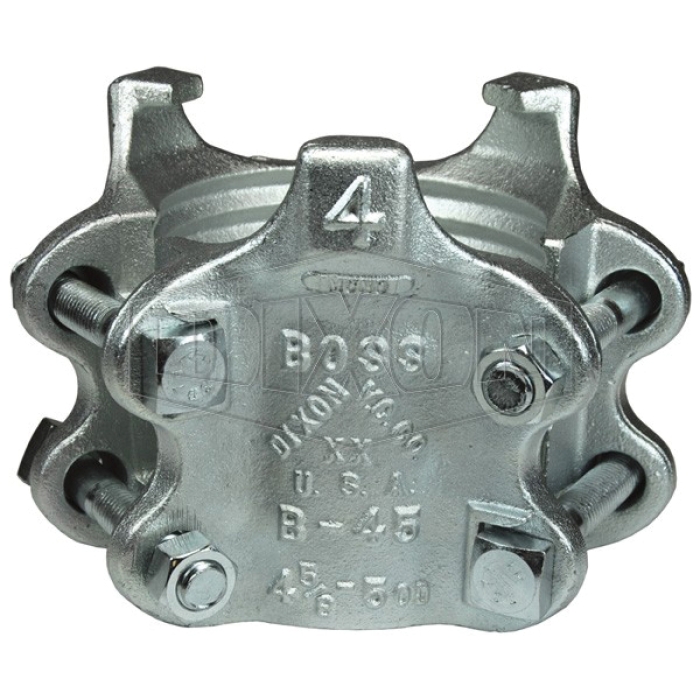

Dixon® Boss™ B45 Zinc-Plated Iron 6-Bolt Clamp, 4 in, 9-1/32 in W, 6-7/32 in Thick

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: B45
  • MPN: B45
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Boss™ 6-Bolt Clamp, Nominal Size: 4 in, 4.62 in Maximum Clamp Diameter, 5 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 150 ft-lb, Material Construction: Iron, Finish: Zinc-Plated, 9-1/32 in Width, 6-7/32 in Thickness, 450 deg F Steam Service

California residents see Prop 65 WARNINGS

Finish      :      Zinc-Plated
Locking Style      :      Bolt
Material      :      Malleable Iron
Material Construction      :      Iron
Maximum Clamp Diameter      :      4.62 in
Minimum Clamp Diameter      :      5 in
Nominal Size      :      4 in
Product Type      :      Bolt Clamp
Temperature Rating      :      450 deg F Steam Service
Thickness      :      6-7/32 in
Torque Rating      :      150 ft-lb
Width      :      9-1/32 in
Six-bolt type clamp with three gripping fingers and three clamp sectionsBolts in boss clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameterAlways tighten bolts to their specified torque valuePeriodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hosesRecommended for steam service up to 450 deg FApplications: For steam service up to 450 deg FInstructions: 6-Bolt Dixon® Boss™ clamp bolt tightening sequence, using a torque wrench, begin tightening the bolts as follows: A) Back bolt (bolt with nut facing assembler that is furthest away from gripping finger) having "X" near it one full turn.B) Front bolt (bolt with nut facing assembler that is closest to gripping finger) of same segment one full turn.C) Moving to clamp segment to the left of the one just tightened, snug bolts by hand (if bolts are loose).D) Back bolt to one full turn.E) Front bolt one full turn.F) Moving to clamp segment to the left of the one just tightened, snug bolts by hand (if bolts are loose).G) Back bolt one full turn.H) Front bolt one full turn.I) Repeat above procedure "a" through "h" until all of the bolts have reached the recommended torque.J) Remove assembly from vise.Safety Notes: The bolts used in the Boss™ interlocking clamps are not standard bolts.They vary from standard bolts in their length, diameter, overall thread length and material hardness.These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only.Dixon® recommends using only factory supplied replacement bolts.Replacement nuts and bolts are available, contact Dixon® for more information.Torque values for clamps are based on dry bolts.The use of lubricant on bolts will adversely effect clamp performance.Do not lubricate nuts and bolts.Recommended torque rating in ft-lb.Worn-out hose couplings can be dangerous.They should be checked regularly and replace when necessary.Each coupling user should review applications and add safety devices where indicated.Note: Pressurized steam is an extremely dangerous commodity.Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service.Always follow the manufacturer's product recommendations for pressurized steam handling.
