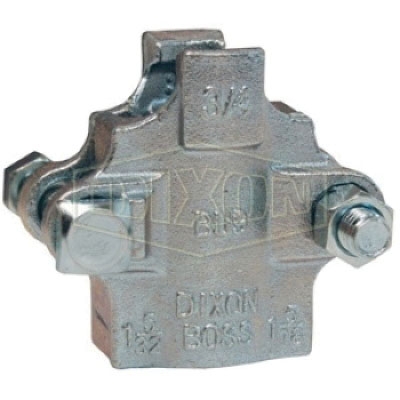

Dixon® Boss™ Cast Carbon Steel 2-Bolt Clamp

Dixon® Boss™ Cast 2-Bolt Clamp, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Boss™ 2-Bolt Clamp, Nominal Size: 1/2 in, 1-4/64 in Maximum Clamp Diameter, 60/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 12 ft-lb, Material Construction: Cast Carbon Steel, 1-7/8 in Length, 2-11/32 in Width, 1-13/16 in Thickness, 450 deg F Steam Service

    California residents see Prop 65 WARNINGS

    Length      :      1-7/8 in
    Locking Style      :      Bolt
    Material      :      Steel
    Material Construction      :      Cast Carbon Steel
    Maximum Clamp Diameter      :      1-4/64 in
    Minimum Clamp Diameter      :      60/64 in
    Nominal Size      :      1/2 in
    Product Type      :      Bolt Clamp
    Sub Brand      :      Boss™
    Temperature Rating      :      450 deg F Steam Service
    Thickness      :      1-13/16 in
    Torque Rating      :      12 ft-lb
    Width      :      2-11/32 in
    • Two-bolt type clamp with two gripping fingers and two clamp sections
    • The correct size Boss clamp must be used
    • Bolts in boss clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
    • Always tighten bolts to their specified torque value
    • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
    • Recommended for steam service up to 450 deg F

    Instructions: 2-Bolt Dixon® Boss™ clamp bolt tightening sequence, using a torque wrench, begin tightening the bolts as follows: A) First bolt (nut facing assembler) one full turn.

  • B) Second bolt (opposite first bolt) one full turn.
  • C) Repeat procedure "a" and "b" until both bolts have reached the recommended torque.
  • D) Remove assembly from vise.

    Safety Notes: The bolts used in the Boss™ interlocking clamps are not standard bolts.

  • They vary from standard bolts in their length, diameter, overall thread length and material hardness.
  • These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only.
  • Dixon® recommends using only factory supplied replacement bolts.
  • Replacement nuts and bolts are available, contact Dixon® for more information.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
  • Do not lubricate nuts and bolts.
  • Recommended torque rating in ft-lb.
  • Worn-out hose couplings can be dangerous.
  • They should be checked regularly and replace when necessary.
  • Each coupling user should review applications and add safety devices where indicated.
  • Note: Pressurized steam is an extremely dangerous commodity.
  • Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!
  • Never use an unapproved item for steam service.
  • Always follow the manufacturer's product recommendations for pressurized steam handling.
