Dixon® BU49 BU49

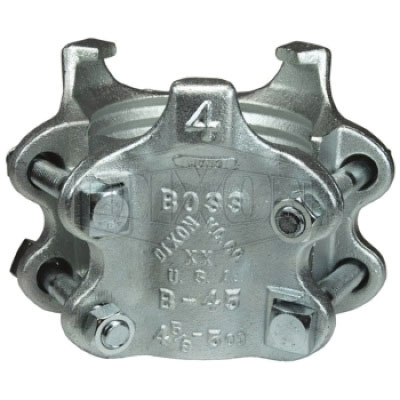

Dixon® Boss™ Iron 6-Bolt Clamp

Dixon® Boss™ 6-Bolt Clamp, Iron

  • ARGPN: BU49 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Boss™ 6-Bolt Clamp, Nominal Size: 4 in, 5-38/64 in Maximum Clamp Diameter, 5-16/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 200 ft-lb, Material Construction: Iron, Finish: Zinc-Plated, 6-3/8 in Length, 10-7/16 in Width, 450 deg F Steam Service

    California residents see Prop 65 WARNINGS

    Finish      :      Zinc-Plated
    Length      :      6-3/8 in
    Locking Style      :      Bolt
    Material      :      Malleable Iron
    Material Construction      :      Iron
    Maximum Clamp Diameter      :      5-38/64 in
    Minimum Clamp Diameter      :      5-16/64 in
    Nominal Size      :      4 in
    Product Type      :      Bolt Clamp
    Sub Brand      :      Boss™
    Temperature Rating      :      450 deg F Steam Service
    Torque Rating      :      200 ft-lb
    Width      :      10-7/16 in
    • Six bolt-type clamp with three gripping fingers and three clamp sections
    • Bolts in boss clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
    • Always tighten bolts to their specified torque value
    • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
    • Recommended for steam service up to 450 deg F

    Instructions: 6-Bolt Dixon® Boss™ clamp bolt tightening sequence, using a torque wrench, begin tightening the bolts as follows: A) Back bolt (bolt with nut facing assembler that is furthest away from gripping finger) having "X" near it one full turn.

  • B) Front bolt (bolt with nut facing assembler that is closest to gripping finger) of same segment one full turn.
  • C) Moving to clamp segment to the left of the one just tightened, snug bolts by hand (if bolts are loose).
  • D) Back bolt to one full turn.
  • E) Front bolt one full turn.
  • F) Moving to clamp segment to the left of the one just tightened, snug bolts by hand (if bolts are loose).
  • G) Back bolt one full turn.
  • H) Front bolt one full turn.
  • I) Repeat above procedure "a" through "h" until all of the bolts have reached the recommended torque.
  • J) Remove assembly from vise.

    Safety Notes: The bolts used in the Boss™ interlocking clamps are not standard bolts.

  • They vary from standard bolts in their length, diameter, overall thread length and material hardness.
  • These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only.
  • Dixon® recommends using only factory supplied replacement bolts.
  • Replacement nuts and bolts are available, contact Dixon® for more information.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
  • Do not lubricate nuts and bolts.
  • Recommended torque rating in ft-lb.
  • Worn-out hose couplings can be dangerous.
  • They should be checked regularly and replace when necessary.
  • Each coupling user should review applications and add safety devices where indicated.
  • Note: Pressurized steam is an extremely dangerous commodity.
  • Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!
  • Never use an unapproved item for steam service.
  • Always follow the manufacturer's product recommendations for pressurized steam handling.
