Dixon® GB28 GB28

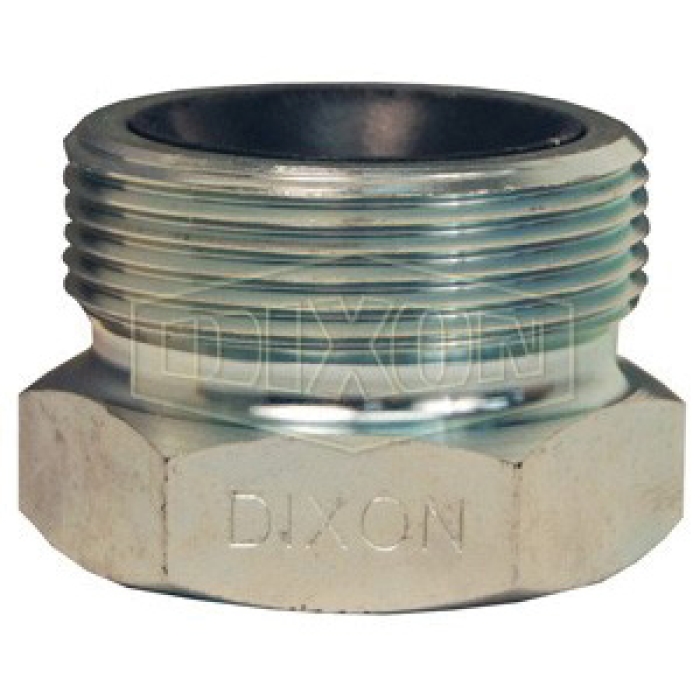

Dixon® Boss™ Plated Iron FNPT x MNPSM Ground Joint Spud

Dixon® Boss™ Ground Joint Spud, NPT X NPSM, Plated, Iron

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Boss™ Ground Joint Spud, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 2 in, Thread Size 1: 2-11-1/2, Connection Type 2: NPSM, Gender 2: Male, Connection Size 2: 2 in, Thread Size 2: 2-1/2-8, Hex Size: 3 in, Material Construction: Iron, Finish: Plated, Dimensions: 2-3/32 in L, 450 deg F, For Use With: Boss™ Ground Joint Fittings

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      2 in
    Connection Size 2      :      2 in
    Connection Type 1      :      NPT
    Connection Type 2      :      NPSM
    Dimensions      :      2-3/32 in L
    Finish      :      Plated
    For Use With      :      Boss™ Ground Joint Fittings
    Gender 1      :      Female
    Gender 2      :      Male
    Hex Size      :      3 in
    Material      :      Malleable Iron
    Material Construction      :      Iron
    Shape      :      Ground Joint Spud
    Sub Brand      :      Boss™
    Temperature Rating      :      450 deg F
    Thread Size 1      :      2-11-1/2
    Thread Size 2      :      2-1/2-8
    • The spud part of the coupling serves as one half of the Boss ground joint connection and is usually fixed to the equipment
    • The stem part that is clamped to the hose is the other half, the two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical, and a pressure seal
    • Positive metal-to-polymer seal
    • Copper seat
    • Leak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the Boss™ ground joint spud
    • The non-metallic polymer seat resists most chemicals found in manufacturing facilities
    • Easy-to-seal
    • Recommended for steam service up to 450 deg F
    • Boss couplings can be applied to many-types of rubber, synthetic, plastic, metallic or semi-metallic hose

    Safety Notes: Worn-out hose couplings can be dangerous.

  • They should be checked regularly and replace when necessary.
  • Each coupling user should review applications and add safety devices where indicated.
  • Pressurized steam is an extremely dangerous commodity.
  • Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!
  • Never use an unapproved item for steam service.
  • Always follow the manufacturer's product recommendations for pressurized steam handling.

    Applications: For air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_B2_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GB18_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GB28_TD.pdf
