Dixon® GM28 GM28

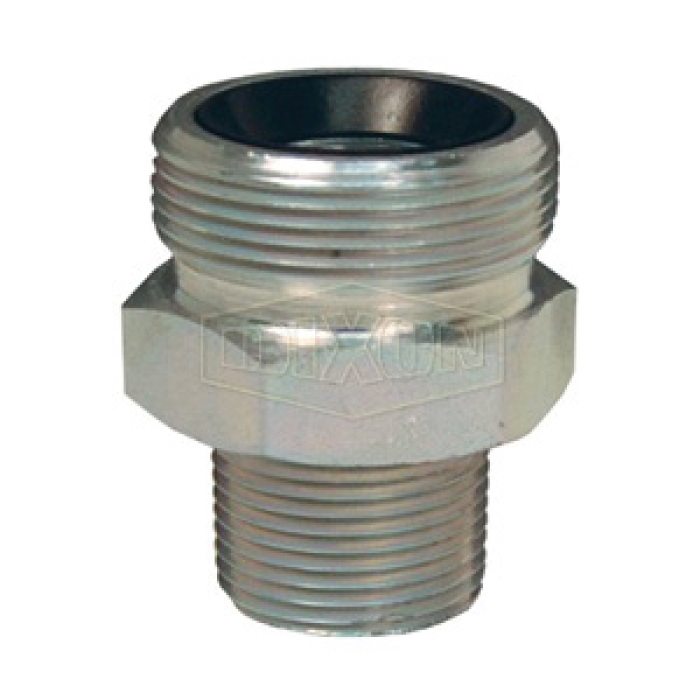

Dixon® Boss™ Plated Iron Ground Joint Spud

Dixon® Boss™ Ground Joint Spud, NPT X NPSM, Iron

pin-int

Dixon® Boss™ Ground Joint Spud, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 2 in, Thread Size 1: 2-1/2-8, Connection Type 2: NPSM, Gender 2: Male, Connection Size 2: 2 in, Thread Size 2: 2-8, Hex Size: 3 in, Material Construction: Iron, Finish: Plated, For Use With: Boss™ Ground Joint Fittings

California residents see Prop 65 WARNINGS

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      NPT
Connection Type 2      :      NPSM
Finish      :      Plated
For Use With      :      Boss™ Ground Joint Fittings
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      3 in
Material      :      Malleable Iron
Material Construction      :      Iron
Shape      :      Ground Joint Spud
Sub Brand      :      Boss™
Thread Size 1      :      2-1/2-8
Thread Size 2      :      2-8
The spud part of the coupling serves as one half of the Boss ground joint connection and is usually fixed to the equipmentThe stem part that is clamped to the hose is the other half, the two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical, and a pressure sealPositive metal-to-polymer sealLeak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the Boss™ ground joint spudThe non-metallic polymer seat resists most chemicals found in manufacturing facilitiesEasy-to-sealPolymer seatRecommended for steam service up to 450 deg FBoss couplings supply a convenient threaded fitting to connect two lengths of hose or a single length to a male or female threaded outlet
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GM18_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GM28_TD.pdf
