Dixon® 4HTRB5 4HTRB5

Dixon® 4HTRB5

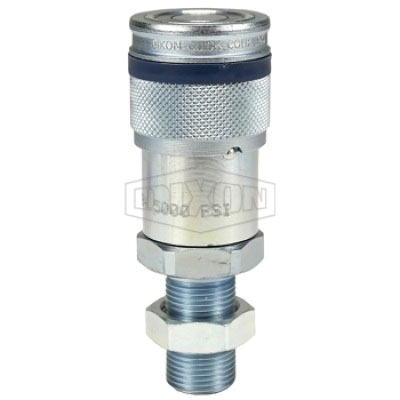

Dixon® Correct Connect™ HT Series Trivalent Chrome-Plated Steel Flushface Bulkhead Coupler, 1/2 in Quick Disconnect x 1 in Male ORFS

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 4HTRB5
  • MPN: 4HTRB5
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Correct Connect™ Flushface Bulkhead Coupler, Series: HT, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: ORFS, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-14, Hex Size: 1-5/16 in, 5000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.54 in OD x 4.37 in L, Dimension Standards: ISO 16028

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      ORFS
Dimension Standards      :      ISO 16028
Dimensions      :      1.54 in OD x 4.37 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Male
Hex Size      :      1-5/16 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5000 psi
Series      :      HT
Shape      :      Coupler
Sub Brand      :      Correct Connect™
Thread Size 2      :      1-14
High-flow performance, compact profileEasily re-buildableDORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditionsMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeCouplers have polyurethane valve stem O-ring, with a temperature range of -65 to 212 deg FAncillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg FPTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damageInterchangeable to ISO 16028Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-Tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMCApplications: For oilfield, industrial hydraulic and construction
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4HTRB5_CAT.pdf
