Dixon® 4HTOF6 4HTOF6

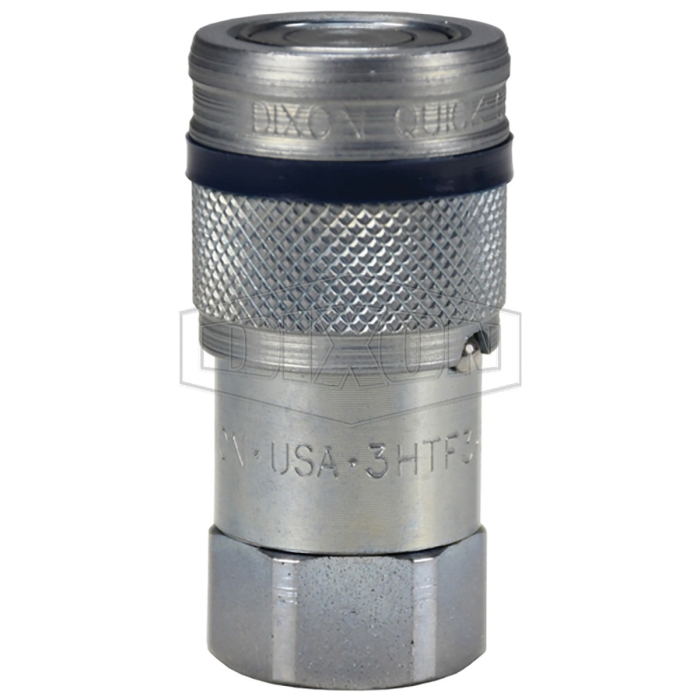

Dixon® Correct Connect™ HT Series Trivalent Chrome-Plated Steel Quick Disconnect x Female ORB Flushface Interchange Coupler

Dixon® Correct Connect™ HT Flushface Interchange Coupler, Quick Disconnect X ORB, Trivalent Chrome-Plated, Steel, 5000 psi

pin-int

Dixon® Correct Connect™ Flushface Interchange Coupler, Series: HT, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2:1-1/16 in, Thread Size 2: 1-1/16-12, Hex Size: 1-5/16 in, 5000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 3.42 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1-1/16 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      ORB
Dimensions      :      3.42 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Female
Hex Size      :      1-5/16 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5000 psi
Series      :      HT
Shape      :      Coupler
Thread Size 2      :      1-1/16-12

High-flow performance, compact profileEasily re-buildableDORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditionsMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeCouplers have polyurethane valve stem O-ring, with a temperature range of -65 to 212 deg FAncillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg FPTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damageInterchangeable to ISO16028Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-Tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMCApplications: For oilfield, industrial hydraulic and construction

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3HTOF3_CAT.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4HTOF6_II.pdf
