Dixon® N4S6 N4S6

Dixon® N4S6

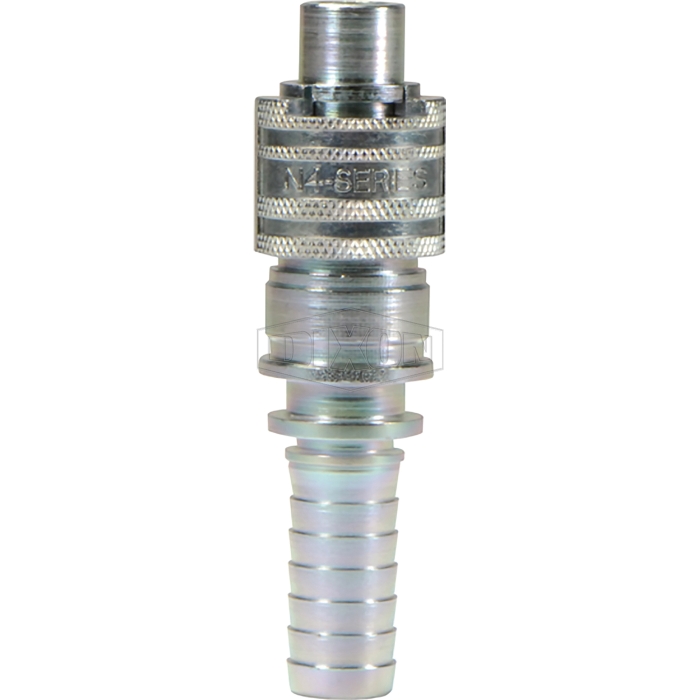

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Interchange Plug, 1/2 in Male Quick Disconnect x 3/4 in Hose Barb

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: N4S6
  • MPN: N4S6
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Dix-Lock™ Interchange Plug, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 3/4 in, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.4 in OD x 4.95 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Dimensions      :      1.4 in OD x 4.95 in L
Finish      :      Trivalent Chrome-Plated
Gender 1      :      Male
Material      :      Steel
Material Construction      :      Steel
Series      :      N
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Machined components are manufactured using solid bar stockStainless steel retaining ring and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeCoupling sleeve constructed of cast zinc steelConforms to MIL-C-3486 and A-A-50431A standardsBowes interchange bayonet styleInterchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lockSafety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.Consult hose manufacturer's catalog for hose end connection ratings.If in doubt, test under controlled conditions for suitability to application.Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4NS3_CAT.pdf
