Dixon® 4PF6 4PF6

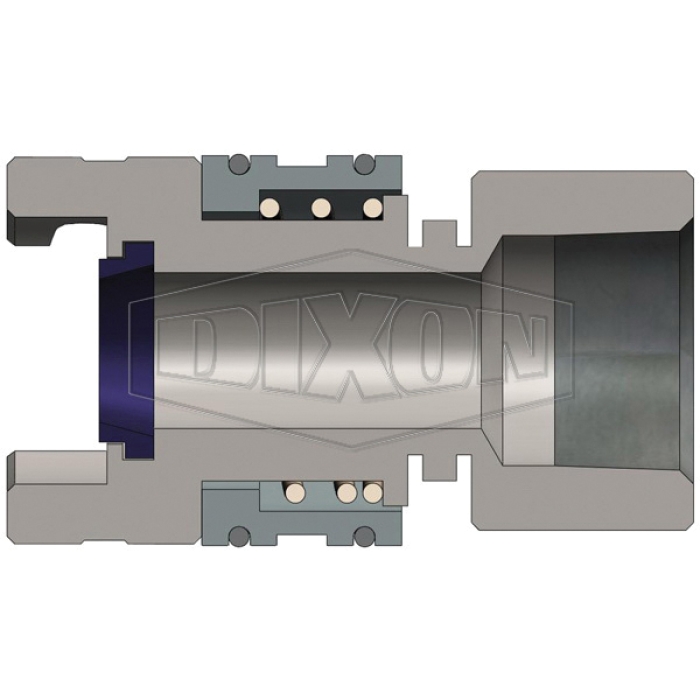

Dixon® Dual-Lock™ P Series Steel Thor Interchange Female Coupler

Dixon® Dual-Lock™ P Series Thor Interchange Coupler, Quick Disconnect X NPTF, Steel, 300 psi

  • ARGPN: 4PF6 loading
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Dual-Lock™ Thor Interchange Coupler, Series: P, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, 300 psi, Material Construction: Steel, Dimensions: 1.55 in OD x 2.75 in L, -40 to 250 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Size 2      :      3/4 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      1.55 in OD x 2.75 in L
    Gender 2      :      Female
    Material      :      Steel
    Material Construction      :      Steel
    Pressure Rating      :      300 psi
    Series      :      P
    Shape      :      Coupler
    Sub Brand      :      Dual-Lock™
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      3/4-14
    • Machined components are manufactured using solid bar stock
    • Nitrile (Buna-N) seals are standard
    • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life on the 1-piece sleeve
    • 2-piece sleeve has a phosphor bronze spring
    • Steel componentry is plated using RoHS compliant trivalent chrome
    • Zinc cast sleeve
    • Thor Finger-Lock interchange
    • Interchanges with National A-type, Campbell double-lock and Thor PHC Series couplings

    Applications: For utility air, water and nitrogen lines

    Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4PS8_CAT.pdf
