Dixon® 850811 850811

Dixon® 850811

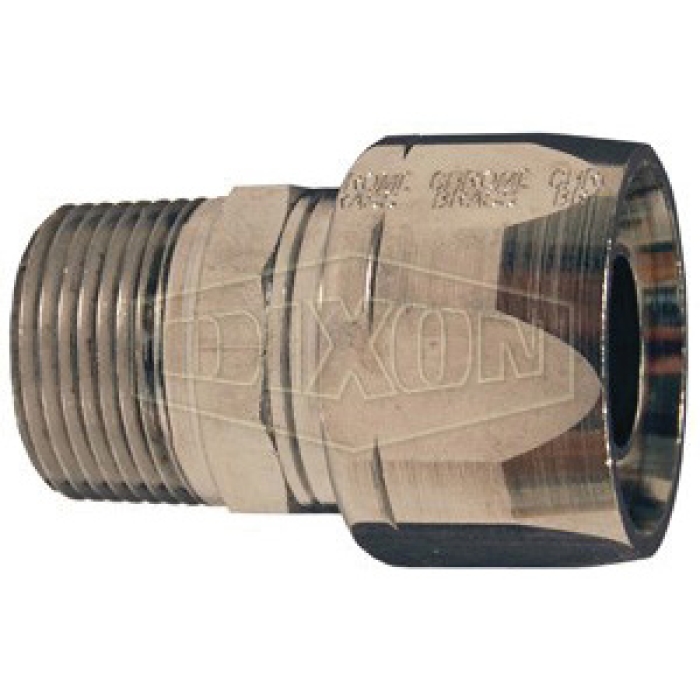

Dixon® Dubl-Grip® 850811 Chrome-Plated Brass MNPT Field Attachable Coupling, 1 in ID x 1-1/2 in OD x 1 in

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 850811
  • MPN: 850811
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Dubl-Grip® Field Attachable Coupling, Connection Type 1: Hose, Connection Size 1: 1 in ID x 1-1/2 in OD, Hose Dash Size: 16, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-3/8 x 1-23/32 in, Material Construction: Brass, Finish: Chrome-Plated, For Use With: Curb Pump Hose

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in ID x 1-1/2 in OD
Connection Size 2      :      1 in
Connection Type      :      Hose~NPT Male
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Finish      :      Chrome-Plated
Fitting Type      :      Coupling
For Use With      :      Curb Pump Hose
Gender 2      :      Male
Hex Size      :      1-3/8 x 1-23/32 in
Hose Dash Size      :      16
Material      :      Brass
Material Construction      :      Brass
Nominal Size      :      1 in
Shape      :      Coupling
Sub Brand      :      Dubl-Grip®
Thread Size 2      :      1-11-1/2
2-piece field attachable couplingStreamlined design prevents damage to hose and fits well on new pump equipmentWide, flat surfaces of body threads protect inside of hose from breakingTapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexingHose is gripped on its full circumference in two places, ensuring a rigid leak-proof connectionCouplings have standard male NPT threadInstructions: Easy assembly: hose is held in position by sleeve as body is threaded home, only a wrench is required to assemble the Dubl-Grip®.Safety Notes: Reattach static wire if required. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_850451_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_850811_TD.pdf
