Dixon® 850841 850841

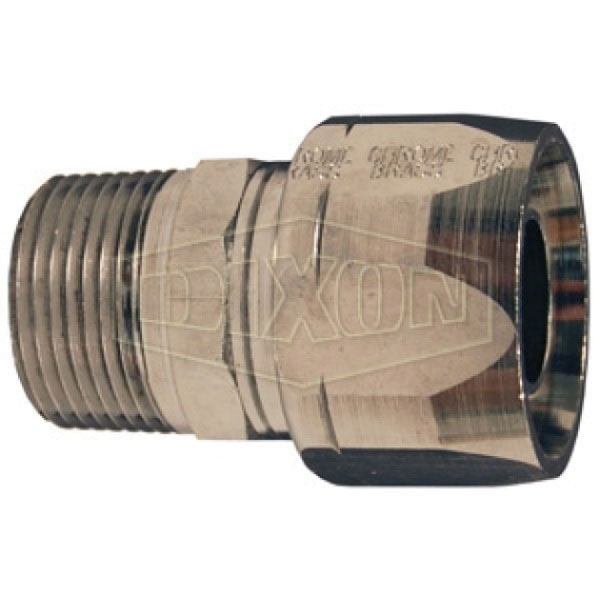

Dixon® Dubl-Grip® Chrome-Plated Brass MNPT Field Attachable Coupling

Dixon® Dubl-Grip® 850841 Chrome-Plated Brass MNPT Field Attachable Coupling, 1 in ID x 1-3/8 in OD x 1 in

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Dubl-Grip® Field Attachable Coupling, Connection Type 1: Hose, Connection Size 1: 1 in ID x 1-3/8 in OD, Hose Dash Size: 16, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1 in, Nominal Size: 1 in, Material Construction: Brass, Finish: Chrome-Plated, For Use With: Curb Pump Hose

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1 in ID x 1-3/8 in OD
    Connection Size 2      :      1 in
    Connection Type      :      Hose~NPT Male
    Connection Type 1      :      Hose
    Connection Type 2      :      NPT
    Finish      :      Chrome-Plated
    Fitting Type      :      Coupling
    For Use With      :      Curb Pump Hose
    Gender 2      :      Male
    Hose Dash Size      :      16
    Material      :      Brass
    Material Construction      :      Brass
    Nominal Size      :      1 in
    Shape      :      Coupling
    Sub Brand      :      Dubl-Grip®
    • 2-piece field attachable coupling
    • Streamlined design prevents damage to hose and fits well on new pump equipment
    • Wide, flat surfaces of body threads protect inside of hose from breaking
    • Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing
    • Hose is gripped on its full circumference in two places, ensuring a rigid leak-proof connection
    • Couplings have standard male NPT thread

    Instructions: Easy assembly: hose is held in position by sleeve as body is threaded home, only a wrench is required to assemble the Dubl-Grip®.

    Safety Notes: Reattach static wire if required.

  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_850451_SS.pdf
