Dixon® E3F3-B E3F3-B

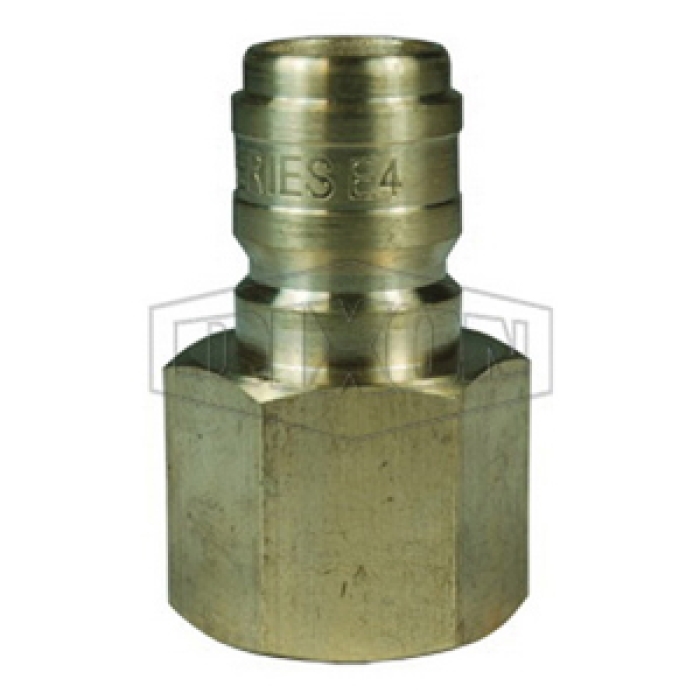

Dixon® E Series Brass Straight Through Interchange Female Threaded Plug

Dixon® E Series Straight Through Interchange Plug, Quick Disconnect X NPTF, Brass

pin-int

Dixon® Straight Through Interchange Plug, Series: E, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 7/8 in, 2700 psi, Material Construction: Brass, Dimensions: 1.01 in OD x 1.60 in L

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.01 in OD x 1.60 in L
Gender 2      :      Female
Hex Size      :      7/8 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      2700 psi
Series      :      E
Shape      :      Plug
Thread Size 2      :      3/8-18
Straight-through pressure-wash interchangeInterchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST SeriesThese plugs have no internal valves, providing maximum flow with minimum pressure dropMachined components are manufactured using solid brassSafety Notes: Do not disconnect with pressure in line.Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_8ES8-B_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_E12F12B_SS.pdf
