Dixon® E3M3-B E3M3-B

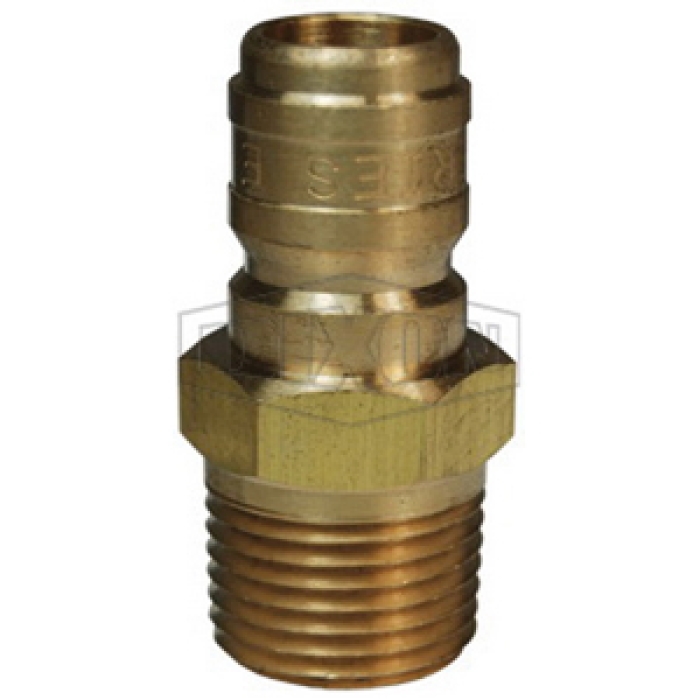

Dixon® E Series Brass Straight Through Interchange Male Threaded Plug

Dixon® E Series Straight Through Interchange Plug, Quick Disconnect X NPTF, Brass

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Straight Through Interchange Plug, Series: E, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 3/4 in, 2700 psi, Material Construction: Brass, Dimensions: 0.79 in OD x 1.69 in L

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      0.79 in OD x 1.69 in L
    Gender 2      :      Male
    Hex Size      :      3/4 in
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      2700 psi
    Series      :      E
    Shape      :      Plug
    Thread Size 2      :      3/8-18
    • Straight-through pressure-wash interchange
    • Interchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
    • These plugs have no internal valves, providing maximum flow with minimum pressure drop

    Safety Notes: Do not disconnect with pressure in line.

  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_8ES8-B_CAT.pdf
