Dixon® E3F3 E3F3

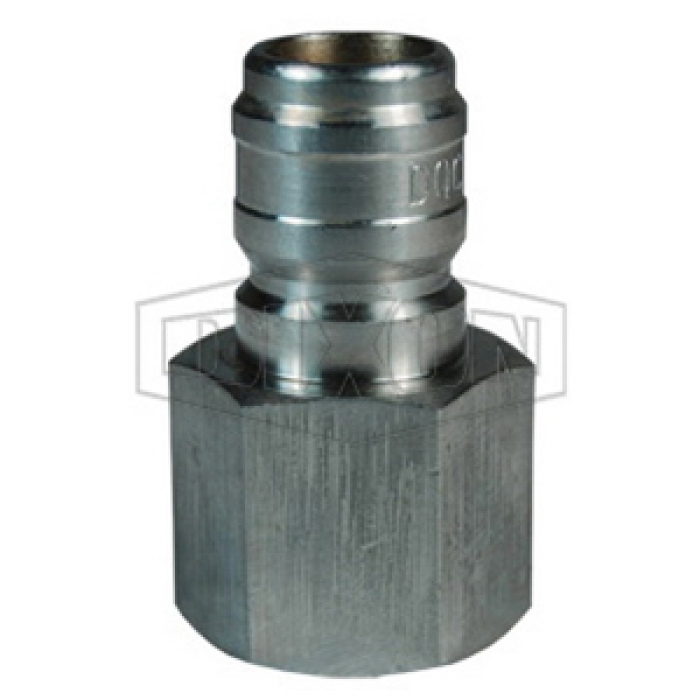

Dixon® E Series Trivalent Chrome-Plated Steel Straight Through Interchange Female Threaded Plug

Dixon® E Series Straight Through Interchange Plug, Quick Disconnect X NPTF, Trivalent Chrome-Plated, Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Straight Through Interchange Plug, Series: E, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 7/8 in, 3500 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.01 in OD x 1.60 in L

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      1.01 in OD x 1.60 in L
    Finish      :      Trivalent Chrome-Plated
    Gender 2      :      Female
    Hex Size      :      7/8 in
    Material      :      Steel
    Material Construction      :      Steel
    Pressure Rating      :      3500 psi
    Series      :      E
    Shape      :      Plug
    Thread Size 2      :      3/8-18
    • Straight-through pressure-wash interchange
    • Interchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
    • These plugs have no internal valves, providing maximum flow with minimum pressure drop
    • Machined components are manufactured using solid steel
    • Steel componentry is plated using RoHS compliant trivalent chrome
    • Steel nipples are hardened to provide heavy-duty performance

    Safety Notes: Do not disconnect with pressure in line.

  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
