Dixon® EA4F4

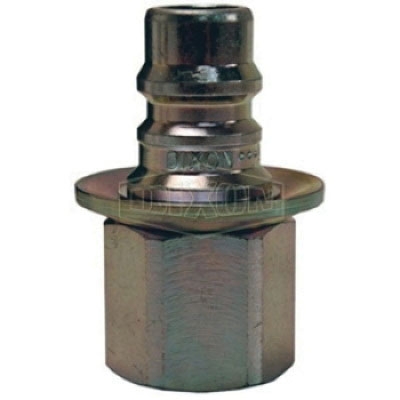

Dixon® EA Series Trivalent Chrome-Plated Steel Water-Blast Interchange Plug, 1/2 in Quick Disconnect x 1/2 in FNPTF
- Manufacturer: Dixon Valve & Coupling Company, LLC
- Brand: Dixon®
- ARGPN: EA4F4
- MPN: EA4F4
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Dixon Valve & Coupling Company, LLC factory-direct delivery:
-
Dixon® Water-Blast Interchange Plug, Series: EA, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/8 in, 10000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.62 in OD x 2.35 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPTF |
| Dimensions | : | 1.62 in OD x 2.35 in L |
| Finish | : | Trivalent Chrome-Plated |
| Gender 2 | : | Female |
| Hex Size | : | 1-1/8 in |
| Material | : | Steel |
| Material Construction | : | Steel |
| Pressure Rating | : | 10000 psi |
| Series | : | EA |
| Shape | : | Plug |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 1/2-14 |
Machined from solid high-strength steel bar stock and hardenedSteel componentry is plated using RoHS compliant trivalent chromePlug-mounted sleeve guard protects against accidental disconnectionSmooth bore full flow design ensures maximum flow with minimal pressure dropSteel body components maximize service life by resisting the effects of brinneling and internal erosionHeavy-duty knurled sleeve with locking pin provides maximum protection against brinneling and accidental disconnectionNitrile (Buna-N) seals are standardWater-blast interchangeCompatible with Parker series-WB, Aeroquip FD69, Snap-Tite 56-series
