Dixon® 10VF10 10VF10

Dixon® 10VF10

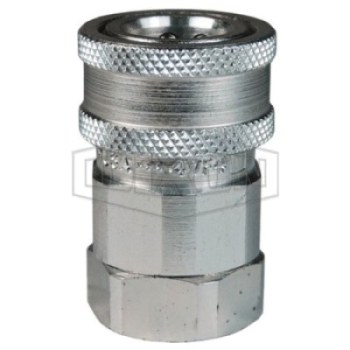

Dixon® V Series Trivalent Chrome-Plated Steel Snap-Tite H/IH Interchange Valved Coupler, 1-1/4 in Quick Disconnect x 1-1/4 in FNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 10VF10
  • MPN: 10VF10
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Snap-Tite H/IH Interchange Valved Coupler, Series: V, Connection Type 1: Quick Disconnect, Connection Size 1: 1-1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1-1/4 in, Thread Size 2: 1-1/4-11-1/2, Hex Size: 2 in, 1750 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.19 in OD x 3.54 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2.19 in OD x 3.54 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Female
Hex Size      :      2 in
Industry Category      :      Hydrulic Quick Disconnects
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      1750 psi
Series      :      V
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1-1/4-11-1/2
General-purpose hydraulic quick-connect provides superior flow characteristics for a variety of applicationsMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeTubular TV valves are constructed from steel bar stock and are designed for optimum performance in pneumatic applicationsNitrile (Buna-N) seals are standardAll couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damageValve O-rings are retained by a unique seal groove profile and are field replaceableInterchangeable to MIL-C-51234Interchangeable with Snap-Tite H/IH Series and Faster TNV
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10VF10_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10VF10_SS.pdf
