Dixon® G50-F-SS G50-F-SS

Dixon® G50-F-SS

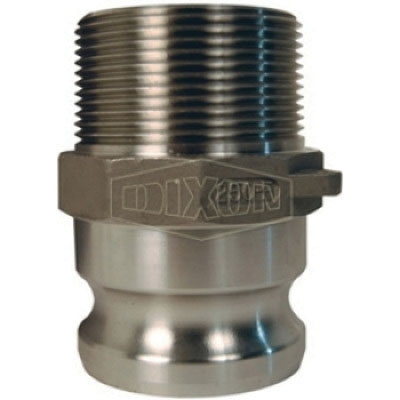

Dixon® G50-F-SS 316 Stainless Steel Global Cam and Groove Adapter, 1/2 in Male Type F x 1/2 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: G50-F-SS
  • MPN: G50-F-SS
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Global Cam and Groove Adapter, Connection Type 1: Type F, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 150 psi, Material Construction: 316 Stainless Steel, Dimensions: 15/16 in Dia x 1-15/16 in L

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Type F
Connection Type 2      :      NPT
Dimensions      :      15/16 in Dia x 1-15/16 in L
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      150 psi
Shape      :      Adapter
Thread Size 2      :      1/2-14
Designed to interchange with all products produced to A-A-59326DApplications: For use with liquidsSafety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!Pressure rating is based on the seal of the mating part.Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_400TCAAL_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_G50FSS_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_G50FSS_TD.pdf
