Dixon® GAM3 GAM3

Dixon® Global Air King™ Plated Steel FNPT 2-Lug Hose End

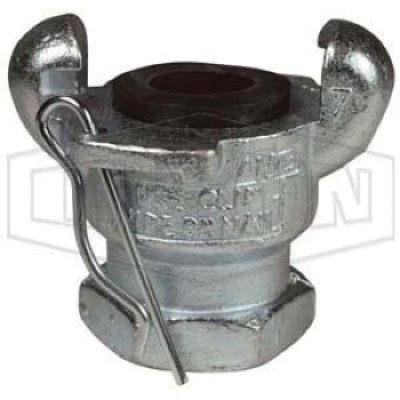

Dixon® Global Air King™ 2-Lug Hose End, Plated Steel, FNPT

  • ARGPN: GAM3 loading
    • Connection Size 1:
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Global Air King™ 2-Lug Hose End, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 1/2 in, Hex Size: 1-1/8 in, 150 psi, Material Construction: Steel, Finish: Plated, Dimensions: 2-1/8 in L x 2-1/2 in W, 70 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Type 1      :      NPT
    Dimensions      :      2-1/8 in L x 2-1/2 in W
    Finish      :      Plated
    Gender 1      :      Female
    Hex Size      :      1-1/8 in
    Material      :      Steel
    Material Construction      :      Steel
    Pressure Rating      :      150 psi
    Shape      :      Hose End
    Sub Brand      :      Global Air King™
    Temperature Rating      :      70 deg F
    • Includes safety clip
    • Supplied with rubber washer AWR4
    • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
    • Only one Air King™ safety clip or wire-type retainer is required for each Air King™ universal coupling
    • Air King™ meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D

    Safety Notes: Air King is for air and water service only.

  • Never use any Air King coupling for steam service!
  • The use of an Air King safety clip or wire-type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose.
  • Pressure rating given at ambient temperature 70 deg F.

    Applications: For air and water service only

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GAM0_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GAM0_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GAM3_TD.pdf
