Dixon® H8F8 H8F8

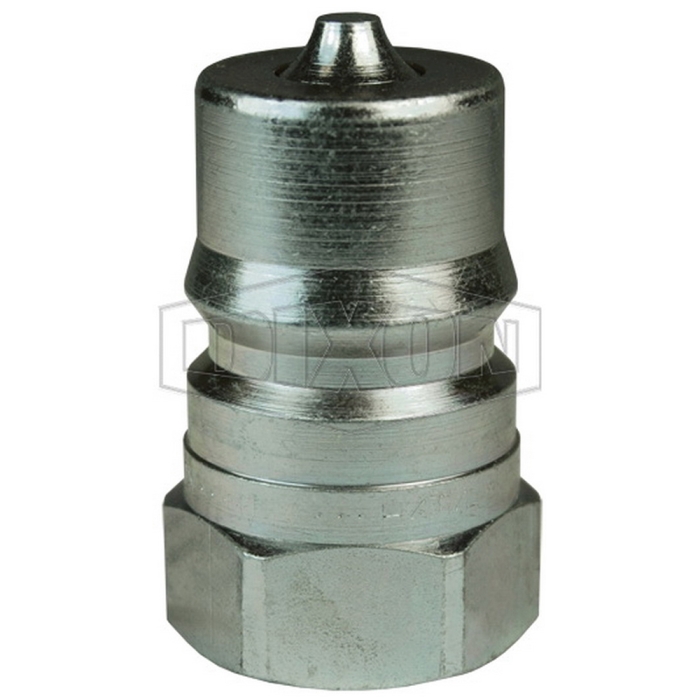

Dixon® H Series Trivalent Chrome-Plated Steel ISO-B Interchange Female Threaded Plug

Dixon® H Series ISO-B Interchange Plug, Quick Disconnect X NPTF, Trivalent Chrome-Plated, Steel

pin-int

Dixon® ISO-B Interchange Plug, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-5/8 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.79 in OD x 2.87 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Gender 2      :      Female
Hex Size      :      1-5/8 in
Industry Category      :      Hydrulic Quick Disconnects~Hydraulic Quick Disconnect Couplings
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      4000 psi
Series      :      H
Shape      :      Plug
Thread Size 2      :      1-11-1/2

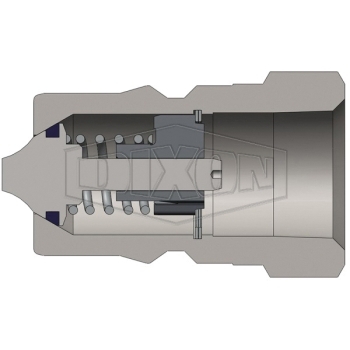

Poppet style shut-off valvesDesigned to prevent fluid loss when disconnectedMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel nipples are hardened to provide heavy-duty performance and resist brinellingInterchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H8DC-A_CAT.pdf
