Dixon® 4KBF4

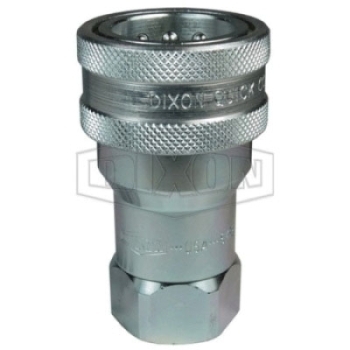

Dixon® K Series Trivalent Chrome-Plated Steel ISO-A Interchange Coupler, 1/2 in Quick Disconnect x 1/2 in Female BSPP
- Manufacturer: Dixon Valve & Coupling Company, LLC
- Brand: Dixon®
- ARGPN: 4KBF4
- MPN: 4KBF4
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Dixon Valve & Coupling Company, LLC factory-direct delivery:
-
Dixon® ISO-A Interchange Coupler, Series: K, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/16 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.49 in OD x 2.62 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | BSPP |
| Dimensions | : | 1.49 in OD x 2.62 in L |
| Finish | : | Trivalent Chrome-Plated |
| Gender 2 | : | Female |
| Hex Size | : | 1-1/16 in |
| Industry Category | : | Hydrulic Quick Disconnects |
| Material | : | Steel |
| Material Construction | : | Steel |
| Pressure Rating | : | 4000 psi |
| Series | : | K |
| Shape | : | Coupler |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 1/2-14 |

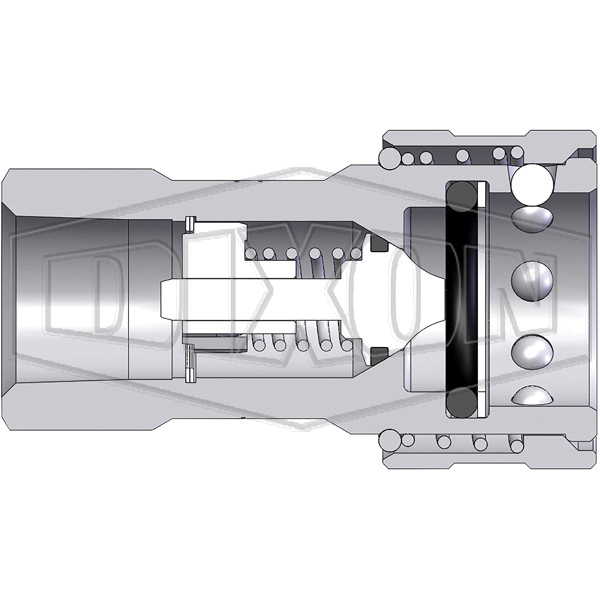

Poppet style shut-off valvesMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeNitrile (Buna-N) seals are standardCouplers have a PTFE anti-extrusion ringValve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connectionInterchangeable to ISO7241 Series AParker 6600 Series, Aeroquip/Eaton FD56 (5600)Faster ANV, Hansen HA 15000, Safeway S56 Series
