Dixon® RST10 RST10

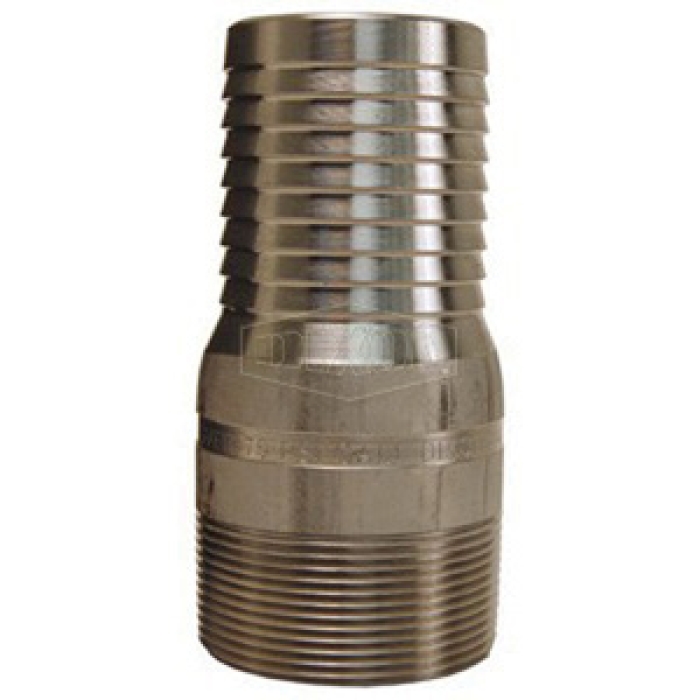

Dixon® King™ 316 Stainless Steel Combination Nipple

Dixon® King™ Combination Nipple, Hose X NPT, 316 Stainless Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® King™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1 in, Material Construction: 316 Stainless Steel, 1-5/16 in Diameter, 3-1/2 in Length

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type 1      :      Hose
    Connection Type 2      :      NPT
    Diameter      :      1-5/16 in
    Gender 2      :      Male
    Industry Category      :      Combination Nipples & Menders
    Length      :      3-1/2 in
    Material      :      Stainless Steel
    Material Construction      :      316 Stainless Steel
    Shape      :      Nipple
    Sub Brand      :      King™
    • NPT threaded end no knurl

    Applications: For low-pressure discharge and suction service for compatible liquids

    Safety Notes:

    • King combination nipples are not recommended for steam.
    • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
    • Consult Dixon® for recommendations.
    • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
    • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
