Dixon® RSTV25 RSTV25

Dixon® King™ 316 Stainless Steel Hose x Grooved Combination Nipple

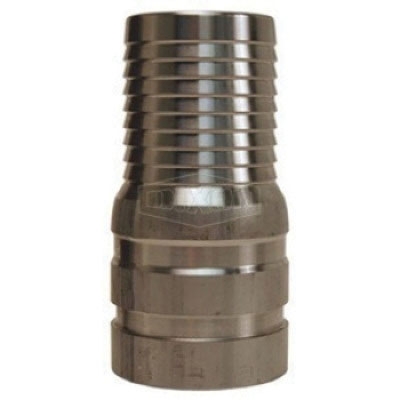

Dixon® King™ RSTV25 316 Stainless Steel Combination Nipple, 2 in Hose x 2 in Grooved

  • ARGPN: RSTV25 loading
    • Connection Size 1:
    • Connection Size 2:
pin-int

Dixon® King™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 2 in, Connection Type 2: Grooved, Connection Size 2: 2 in, Material Construction: 316 Stainless Steel, 2-3/8 in Diameter, 4-11/16 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Hose
Connection Type 2      :      Grooved
Diameter      :      2-3/8 in
Industry Category      :      Combination Nipples & Menders
Length      :      4-11/16 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Shape      :      Nipple
Sub Brand      :      King™
Applications: Recommended for low pressure discharge and suction service for compatible liquidsSafety Notes: King combination nipples are not recommended for steam.The working pressure may vary with the construction of the hose, the type of clamping system used and the application.Consult Dixon® for recommendations.In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.Not for compressible products such as air or nitrogen.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV20_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV25_TD.pdf
