Dixon® AST10 AST10

Dixon® AST10

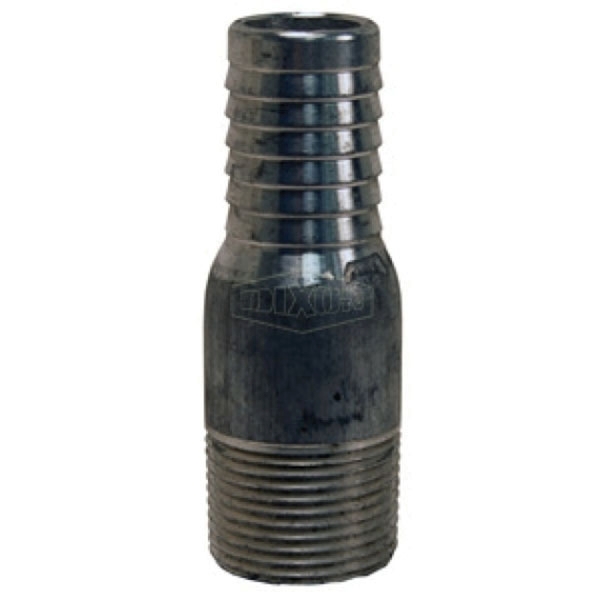

Dixon® King™ AST10 Aluminum Combination Nipple with Knurled Wrench Grip, 1 in Hose Barb x 1 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: AST10
  • MPN: AST10
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • Sold As: 50/PK
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® King™ Combination Nipple with Knurled Wrench Grip, Connection Type 1: Hose Barb, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1 in, Material Construction: Aluminum, 1-5/16 in Diameter, 3-1/2 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      NPT
Diameter      :      1-5/16 in
Gender 2      :      Male
Length      :      3-1/2 in
Material      :      Aluminum
Material Construction      :      Aluminum
Shape      :      Nipple
Sub Brand      :      King™
NPT threaded end with knurled wrench gripSafety Notes: King combination nipples are not recommended for steam. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. Consult Dixon® for recommendations. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement.For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook. Not for compressible products such as air or nitrogen.Applications: For low-pressure discharge and suction service for compatible liquids
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST1_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST10_TD.pdf
