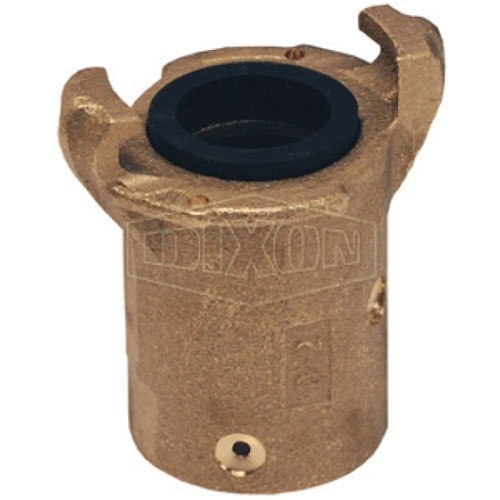

Dixon® King™ BSB100 Brass Sand Blast Coupling, 1 in Quick Disconnect x 1 in Hose

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: BSB100
  • MPN: BSB100
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® King™ Sand Blast Coupling, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: Hose, Connection Size 2: 1 in, 110 psi, Material Construction: Brass, Dimensions: 3-7/16 in L x 3-5/16 in W, 70 deg F, For Use With: Sand Blast Hose

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose
Dimensions      :      3-7/16 in L x 3-5/16 in W
For Use With      :      Sand Blast Hose
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      110 psi
Shape      :      Coupling
Sub Brand      :      King™
Temperature Rating      :      70 deg F
Supplied with screwsInstructions: Ends of hose must be cut square to fit snug against metal end.Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180 deg from first to ensure best centering.After all screws have been placed, check tube opposite screws to be sure screws have not penetrated completely through.On quick couplings, insert safety clips.Safety Notes: Abrasive blasting equipment must have hose safety cables or hose coupling safety clips installed.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_BSB100_SS.pdf
