Dixon® RST35CS RST35CS

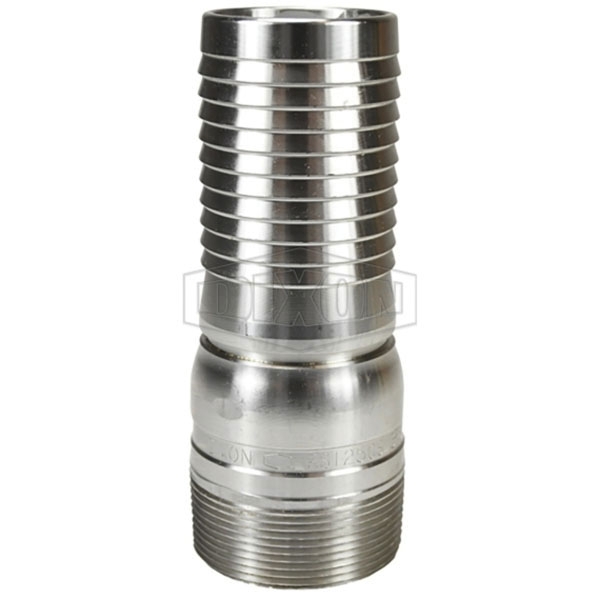

Dixon® King Crimp™ 316 Stainless Steel Hose x MNPT Combination Nipple

Dixon® King Crimp™ RST35CS 316 Stainless Steel Combination Nipple, 3 in Hose x 3 in MNPT

pin-int

Dixon® King Crimp™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 3 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3 in, Material Construction: 316 Stainless Steel, 7-17/32 in Length, For Use With: King Crimp™ Sleeves and Ferrules

California residents see Prop 65 WARNINGS

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type 1      :      Hose
Connection Type 2      :      NPT
For Use With      :      King Crimp™ Sleeves and Ferrules
Gender 2      :      Male
Industry Category      :      Combination Nipples & Menders
Length      :      7-17/32 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Shape      :      Nipple
Sub Brand      :      King Crimp™
There are two grooves on the crimp style King Combination nipples, the second groove is the roll stamp groove which has the part number and 'call Dixon®' stamped on it, this groove is a smooth concentric groove so that the stamp can be legibleSafety Notes: Only use the crimp style shanks with the crimp style sleeves and ferrules.Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RST15CS_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RST35CS_TD.pdf
