Dixon® STC25CS STC25CS

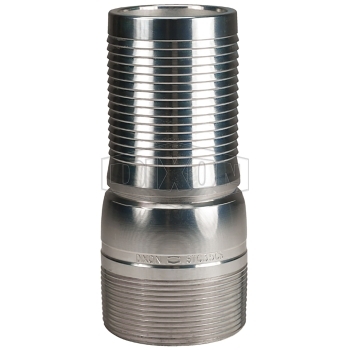

Dixon® King Crimp™ Plated Carbon Steel Combination Nipple

Dixon® King Crimp™ Combination Nipple, Hose X NPT, Plated, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® King Crimp™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 2 in, Material Construction: Carbon Steel, Finish: Plated, 2-3/8 in Diameter, 5-13/16 in Length, For Use With: King Crimp™ Style Sleeves, Ferrules

    Connection Size 1      :      2 in
    Connection Size 2      :      2 in
    Connection Type 1      :      Hose
    Connection Type 2      :      NPT
    Diameter      :      2-3/8 in
    Finish      :      Plated
    For Use With      :      King Crimp™ Style Sleeves, Ferrules
    Gender 2      :      Male
    Industry Category      :      Marine Industrial Hose Ends~Combination Nipples & Menders
    Length      :      5-13/16 in
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Shape      :      Nipple
    Sub Brand      :      King Crimp™
    • There are two grooves on the crimp style King Combination nipples, the second groove is the roll stamp groove which has the part number and 'call Dixon®' stamped on it, this groove is a smooth concentric groove so that the stamp can be legible

    Safety Notes: Only use the crimp style shanks with the crimp style sleeves and ferrules.

  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RST15CS_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STC25CS_TD.pdf
