Dixon® STV40CS STV40CS

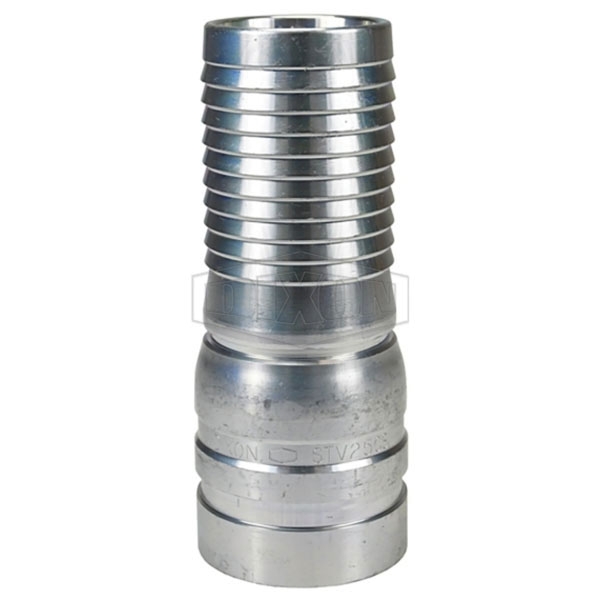

Dixon® King Crimp™ Plated Schedule 80 Carbon Steel Hose x Grooved Combination Nipple

Dixon® King Crimp™ STV40CS Plated Schedule 80 Carbon Steel Combination Nipple, 4 in Hose x 4 in Grooved

  • ARGPN: STV40CS loading
    • Connection Size 1:
    • Connection Size 2:
pin-int

Dixon® King Crimp™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 4 in, Connection Type 2: Grooved, Connection Size 2: 4 in, Material Construction: Schedule 80 Carbon Steel, Finish: Plated, 4-1/2 in Diameter, 7-27/32 in Length, For Use With: King Crimp™ Style Sleeves, Ferrules

California residents see Prop 65 WARNINGS

Connection Size 1      :      4 in
Connection Size 2      :      4 in
Connection Type 1      :      Hose
Connection Type 2      :      Grooved
Diameter      :      4-1/2 in
Finish      :      Plated
For Use With      :      King Crimp™ Style Sleeves, Ferrules
Length      :      7-27/32 in
Material      :      Steel
Material Construction      :      Schedule 80 Carbon Steel
Shape      :      Nipple
Sub Brand      :      King Crimp™
There are two grooves on the crimp style King Combination nipplesThe second groove is the roll stamp groove which has the part number and 'call Dixon®' stamped on itThis groove is a smooth concentric groove so that the stamp can be legibleSafety Notes: Only use the crimp style shanks with the crimp style sleeves and ferrules.Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV25CS_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STV40CS_TD.pdf
