Dixon® STC1510 STC1510

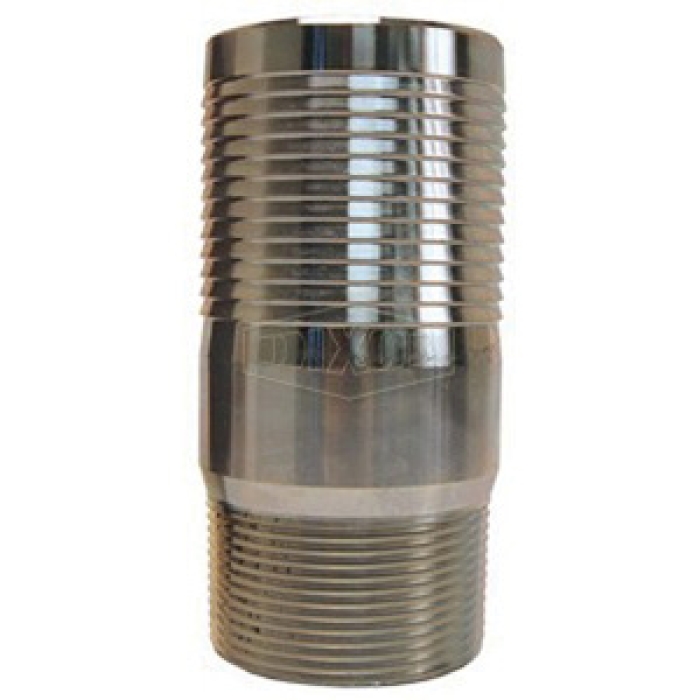

Dixon® King™ Plated Steel Jump Size Combination Nipple

Dixon® King™ Jump Size Combination Nipple, Hose Stem X NPT, Plated, Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® King™ Jump Size Combination Nipple, Connection Type 1: Hose Stem, Connection Size 1: 1-1/4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1 in, Material Construction: Steel, Finish: Plated, 3-21/32 in Length

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1-1/4 in
    Connection Size 2      :      1 in
    Connection Type 1      :      Hose Stem
    Connection Type 2      :      NPT
    Finish      :      Plated
    Gender 2      :      Male
    Industry Category      :      Marine Industrial Hose Ends~Combination Nipples & Menders
    Length      :      3-21/32 in
    Material      :      Steel
    Material Construction      :      Steel
    Shape      :      Nipple
    Sub Brand      :      King™

    Applications: For low-pressure discharge and suction service for compatible liquids

    Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST35_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STC2535_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STC1510_TD.pdf
