Dixon® STC80 STC80

Dixon® STC80

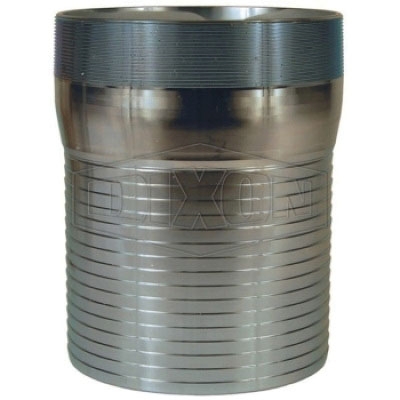

Dixon® King™ STC80 Plated Steel Combination Nipple, 8 in Hose x 8 in MNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: STC80
  • MPN: STC80
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® King™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 8 in, Material Construction: Steel, Finish: Plated, 8-5/8 in Diameter, 12-3/16 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      8 in
Connection Size 2      :      8 in
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Diameter      :      8-5/8 in
Finish      :      Plated
Gender 2      :      Male
Industry Category      :      Marine Industrial Hose Ends~Combination Nipples & Menders
Length      :      12-3/16 in
Material      :      Steel
Material Construction      :      Steel
Shape      :      Nipple
Sub Brand      :      King™
  • NPT threaded end no knurl

Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

    Applications: For low-pressure discharge and suction service for compatible liquids

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RST1_CUT.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STC80_TD.pdf
