Dixon® STV20 STV20

Dixon® STV20

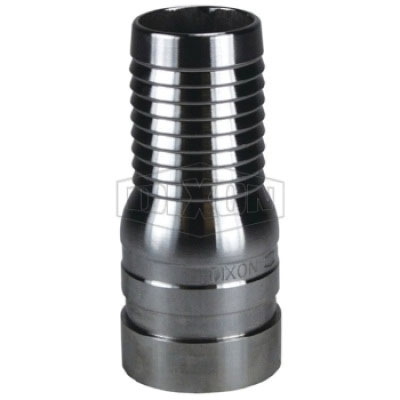

Dixon® King™ STV20 Unplated Steel Combination Nipple, 1-1/2 in Hose Barb x 1-1/2 in Grooved

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: STV20
  • MPN: STV20
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® King™ Combination Nipple, Connection Type 1: Hose Barb, Connection Size 1: 1-1/2 in, Connection Type 2: Grooved, Connection Size 2: 1-1/2 in, Material Construction: Steel, Finish: Unplated, 1-29/32 in Diameter, 4-5/32 in Length, 70 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      Grooved
Diameter      :      1-29/32 in
Finish      :      Unplated
Length      :      4-5/32 in
Material      :      Steel
Material Construction      :      Steel
Shape      :      Nipple
Sub Brand      :      King™
Temperature Rating      :      70 deg F

Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
  • Not for compressible products such as air or nitrogen.

    Applications: For low-pressure discharge and suction service for compatible liquids, crimp sleeves

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV20_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STV20_TD.pdf
