Dixon® ST35 ST35

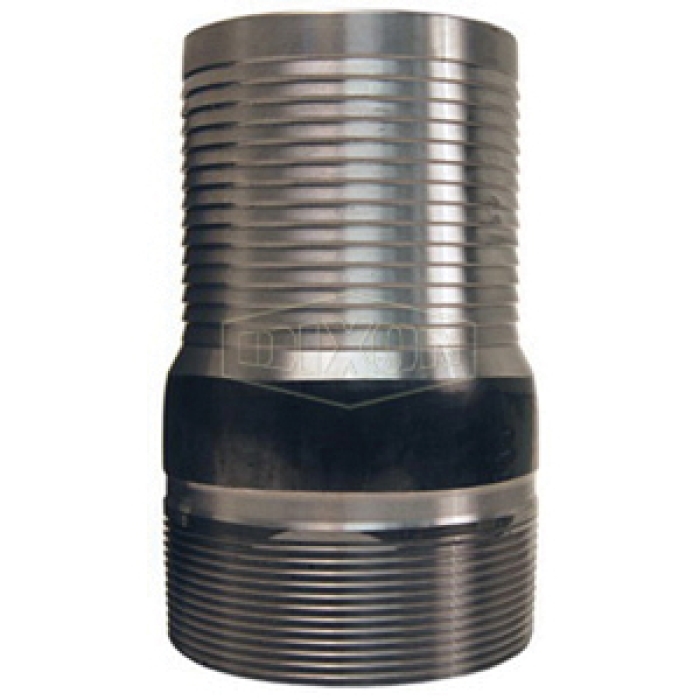

Dixon® King™ Unplated Carbon Steel Combination Nipple

Dixon® King™ Combination Nipple, NPT X Hose Barb, Unplated, Carbon Steel

  • ARGPN: ST35 loading
    • Connection Size 1:
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® King™ Combination Nipple, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 3 in, Connection Type 2: Hose Barb, Connection Size 2: 3 in, Material Construction: Carbon Steel, Finish: Unplated, 3-1/32 in ID x 3-1/2 in OD Diameter, 6 in Length

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      3 in
    Connection Size 2      :      3 in
    Connection Type 1      :      NPT
    Connection Type 2      :      Hose Barb
    Dimensions      :      3-1/32 in ID x 3-1/2 in OD x 6 in L
    Finish      :      Unplated
    Gender 1      :      Male
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Shape      :      Nipple
    Sub Brand      :      King™
    • NPT threaded end no knurl

    Applications: For low-pressure discharge and suction service for compatible liquids

    Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
  • Not for compressible products such as air or nitrogen.
