Dixon® ST30 ST30

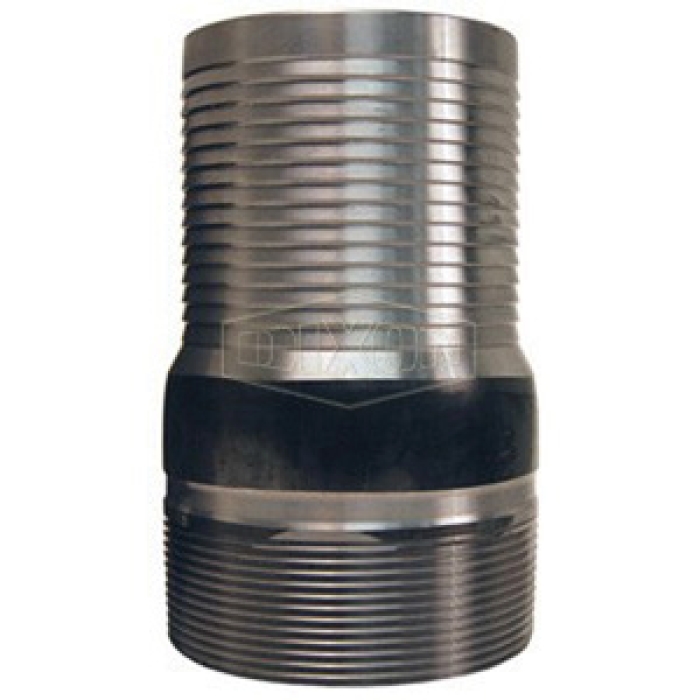

Dixon® King™ Unplated Steel Combination Nipple

Dixon® King™ Combination Nipple, Hose Barb X NPT, Unplated, Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® King™ Combination Nipple, Connection Type 1: Hose Barb, Connection Size 1: 2-1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 2-1/2 in, Material Construction: Steel, Finish: Unplated, 2-7/8 in Diameter, 5-9/16 in Length

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      2-1/2 in
    Connection Size 2      :      2-1/2 in
    Connection Type 1      :      Hose Barb
    Connection Type 2      :      NPT
    Diameter      :      2-7/8 in
    Finish      :      Unplated
    Gender 2      :      Male
    Industry Category      :      Waste Water Industrial Hose Ends
    Length      :      5-9/16 in
    Material      :      Steel
    Material Construction      :      Steel
    Shape      :      Nipple
    Sub Brand      :      King™
    • NPT threaded end no knurl
    • King™ combination nipples are not recommended for steam

    Applications: Recommended for low-pressure discharge and suction service for compatible liquids

    Safety Notes:

    • King combination nipples are not recommended for steam.
    • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
    • Consult Dixon® for recommendations.
    • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
    • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
    • Not for compressible products such as air or nitrogen.
