Dixon® L17-800APX L17-800APX

Dixon® L17-800APX

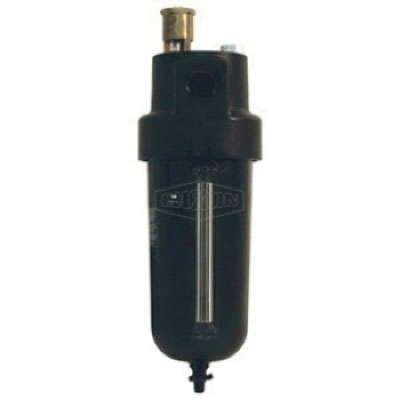

Dixon® L17 1 Jumbo Micro-Fog Lubricator with Dome, 1 in, 1 in, 275 scfm

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: L17-800APX
  • MPN: L17-800APX
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Jumbo Micro-Fog Lubricator with Dome, Series: L17 1, Inlet Size: 1 in, 275 scfm, 250 psi, Lubricant Capacity: 1 qt, Material Construction: Aluminum, Metal Bowl, 175 deg F

California residents see Prop 65 WARNINGS

Bowl Material      :      Metal
Flow Rate      :      275 scfm
Inlet Size      :      1 in
Lubricant Capacity      :      1 qt
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      250 psi
Product Type      :      Micro-Fog Lubricator
Series      :      L17 1
Temperature Rating      :      175 deg F
Metal bowl with sight glass1 qt reservoirOil level sight gaugeHigh pressure dome with aluminum case and FKM O-rings and sealsHigh pressure sight glass on bowls and metal petcock drainParticle removal per ISO 8573-1, Class 5 and Class 3One turn threaded bowl attachment permits easy maintenanceMicro-fog lubricators are used for applications containing one or more points of lubrication, cylinders and multiple or single toolsApplications: For use with alcohol or other anti-freeze agents when units are installed in cold temperature environmentsSafety Notes: FRL's are designed for air service only, unless otherwise indicated.Micro-fog lubricators cannot be filled under pressure.SCFM ratings at 90 psig inlet pressure.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_L17800APX_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_L17800APX_SS.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_L17800APX_II.pdf
