Dixon® LS188

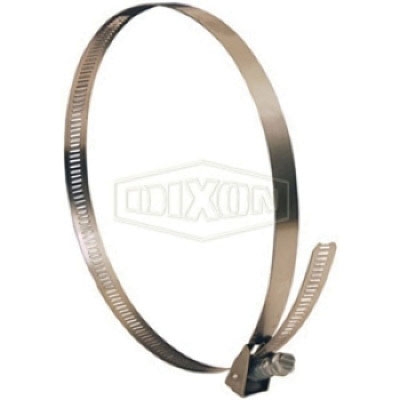

Dixon® LS Series 201 Stainless Steel Quick Release Worm Gear Clamp, 2-1/16 in, 1/2 in W

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: LS188
  • MPN: LS188
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Quick Release Worm Gear Clamp, Series: LS, 12-5/16 in Maximum Clamp Diameter, 2-1/16 in Minimum Clamp Diameter, Locking Style: Screw, Torque Rating: 50 in-lb, Material Construction: 201 Stainless Steel, 1/2 in Width, Packaging Quantity: 10 PK

California residents see Prop 65 WARNINGS

Industry Category      :      Hydrulic Quick Disconnects
Locking Style      :      Screw
Material      :      Stainless Steel
Material Construction      :      201 Stainless Steel
Maximum Clamp Diameter      :      12-5/16 in
Minimum Clamp Diameter      :      2-1/16 in
Packaging Quantity      :      10 PK
Product Type      :      Worm Gear Clamp
Series      :      LS
Torque Rating      :      50 in-lb
Width      :      1/2 in
5/16 in slotted hex head screw design201 stainless steel band and housingPlated, hardened carbon steel screwInstructions: Suggested installation torque 25 - 35 in-lb, maximum recommended torque 50 in-lb.Safety Notes: Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4001_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4001_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_LS188_TD.pdf
