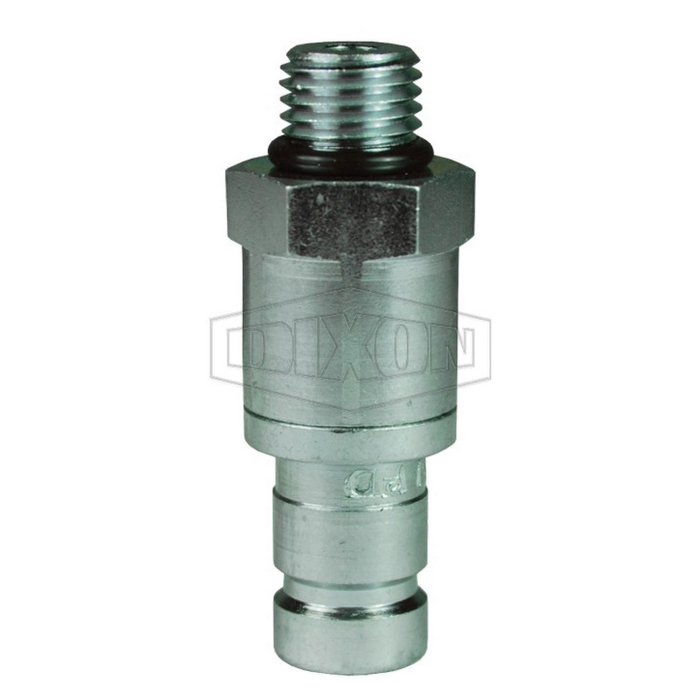

Dixon® PD Series Trivalent Chrome-Plated Steel Male ORB Diagnostic Plug
Dixon® PD Diagnostic Plug, Quick Disconnect X ORB, Trivalent Chrome-Plated, Steel, 6000 psi
-
ARGPN: PD1OM2
-
-
Connection Size 2:
-
Connection Size 2:
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Dixon Valve & Coupling Company, LLC factory-direct delivery:
Dixon® Diagnostic Plug, Series: PD, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: ORB, Gender 2: Male, Connection Size 2: 7/16 in, Thread Size 2: 7/16-20, Hex Size: 17 mm, 6000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.76 in Dia x 1.93 in L, -40 to 250 deg F, For Use With: PD Series Quick Disconnect Diagnostic Interchange Hydraulic Couplings
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/8 in |
| Connection Size 2 | : | 7/16 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | ORB |
| Dimensions | : | 0.76 in Dia x 1.93 in L |
| Finish | : | Trivalent Chrome-Plated |
| For Use With | : | PD Series Quick Disconnect Diagnostic Interchange Hydraulic Couplings |
| Gender 2 | : | Male |
| Hex Size | : | 17 mm |
| Material | : | Steel |
| Material Construction | : | Steel |
| Pressure Rating | : | 6000 psi |
| Series | : | PD |
| Shape | : | Plug |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 7/16-20 |
Machined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel nipples are hardened to provide heavy-duty performance and resist brinelling
