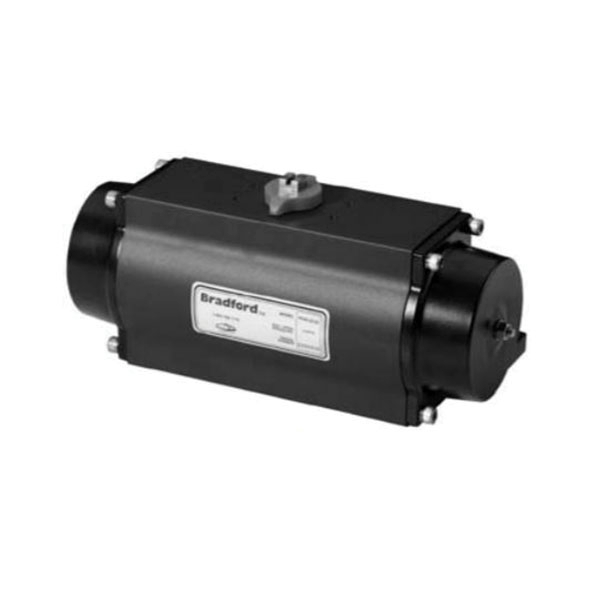

Dixon® RP-BA-045-SR

Dixon® Spring Return Actuator, Series: RP-BA, Material Construction: Anodized Aluminum, 205.6 mm Length, 95 mm Width

Length	:	205.6 mm
Material	:	Aluminum
Material Construction	:	Anodized Aluminum
Product Type	:	Actuator
Series	:	RP-BA
Width	:	95 mm

Extruded hard anodized aluminum alloy body for wear and corrosion resistance and reduced frictionHeavy-duty and high-tensile steel springs with retainer and guide for safe and easy assemblyDie-cast aluminum alloy piston fitted with nylon bushing guides and Buna-N sealsEnd caps are epoxy-coated die-cast aluminum alloy for maximum resistance to corrosive environmentsElectroless nickel-plated carbon steel pinion for maximum corrosion and wear resistanceRotation adjustment, a full +/- 5 deg of travel adjustment in the open and closed positionsSolenoid interface - international NAMUR solenoid mounting interface is standard on all unitsA high-visibility polyethylene for indication, open/close indication is standard on all models

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RPBA045SR_CAT.pdf
