Dixon® L04 L04

Dixon® Series L Style 10 Ductile Iron Grooved Lightweight Flexible Coupling

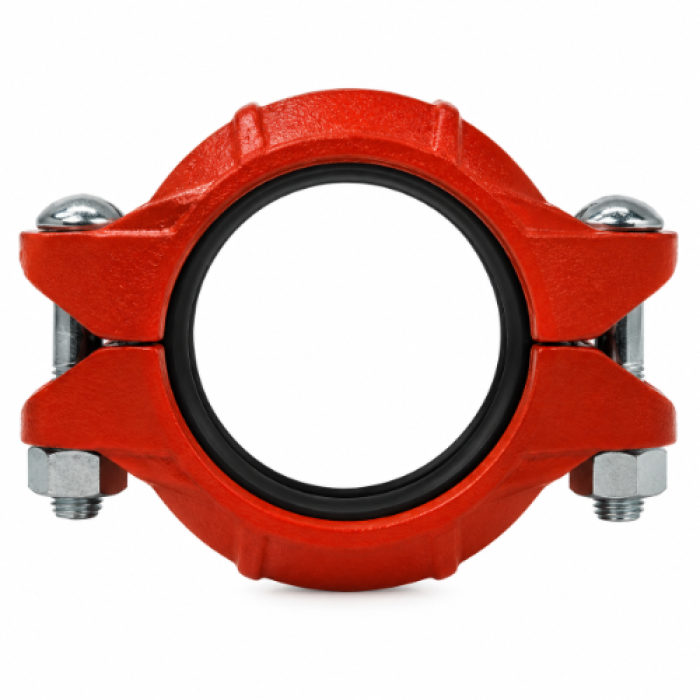

Dixon® L04 Ductile Iron Grooved Lightweight Flexible Coupling, Series L Style 10, 4 in (4.500 in Pipe OD), EPDM Gasket, 300 psi

pin-int

A lighter way to join grooved pipe. The Dixon® L04 Series L coupling bolts up in minutes, flexes with the line and holds 300 psi - ideal for irrigation, mining and compressed air runs.

Dixon® Grooved Lightweight Flexible Coupling, Shape: Coupling, Series: L (Style 10), Connection Type: Grooved x Grooved, Connection Size: 4 in, Pipe OD: 4.500 in, Pressure Rating: 300 psi at 70 deg F, Material: Ductile Iron, Gasket: EPDM, Bolts: 2 x 1/2 in, Finish: Rust Inhibiting Paint. The Dixon® L04 is a 4 in Series L, Style 10 lightweight flexible coupling for roll- or cut-grooved pipe with a 4.500 in outside diameter. Two ductile iron housings close over an EPDM gasket with two 1/2 in bolts and nuts, and the joint is rated to 300 psi at 70 deg F (21 deg C). Designed for moderate internal pressure or where weight is a factor, it allows up to 5% deflection and is UL Listed and FM Approved. Comparable to Victaulic Style 75 and Grinnell Figure 7000.

Connection Size 1      :      4 in
Connection Size 2      :      4 in
Connection Type 1      :      Grooved
Connection Type 2      :      Grooved
Dimensions      :      4.500 in Pipe OD
Finish      :      Rust Inhibiting Paint
For Use With      :      General purpose, mining, irrigation and compressed air grooved piping systems
Material      :      Ductile Iron
Material Construction      :      Ductile Iron Housing, EPDM Gasket
Packaging Quantity      :      1
Pressure Rating      :      300 psi
Series      :      L (Style 10)
Shape      :      Coupling
Series L, Style 10 lightweight flexible grooved coupling; 4 in nominal size; 4.500 in pipe OD; 300 psi max at 70 deg F; ductile iron housing; EPDM gasket; 2 x 1/2 in bolts; rust inhibiting paint finish; up to 5% deflection; UL Listed; FM Approved
