Dixon® 4STF4

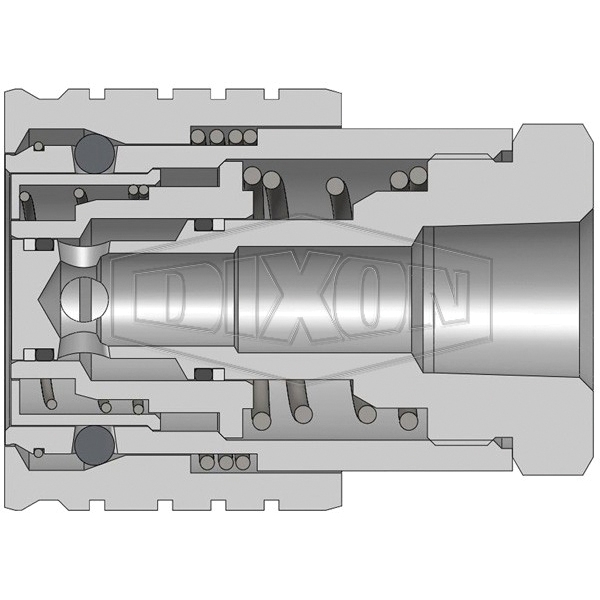

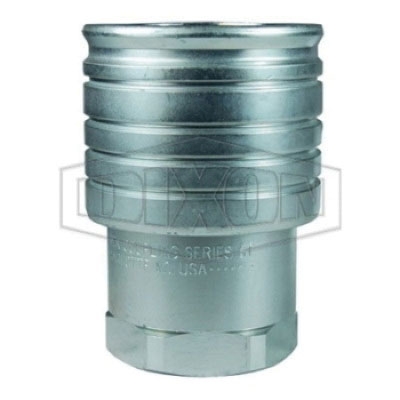

Dixon® ST Series Trivalent Chrome-Plated Steel Snap-Tite 71 Interchange Coupler, 1/2 in Quick Disconnect x 1/2 in FNPTF
- Manufacturer: Dixon Valve & Coupling Company, LLC
- Brand: Dixon®
- ARGPN: 4STF4
- MPN: 4STF4
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Dixon Valve & Coupling Company, LLC factory-direct delivery:
-
Dixon® Snap-Tite 71 Interchange Coupler, Series: ST, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/2 in, 10000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.98 in OD x 2.77 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPTF |
| Dimensions | : | 1.98 in OD x 2.77 in L |
| Finish | : | Trivalent Chrome-Plated |
| Gender 2 | : | Female |
| Hex Size | : | 1-1/2 in |
| Material | : | Steel |
| Material Construction | : | Steel |
| Pressure Rating | : | 10000 psi |
| Series | : | ST |
| Shape | : | Coupler |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 1/2-14 |
Machined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeNitrile (Buna-N) seals are standardIncorporates PTFE anti-extrusion rings to protect seal components from dynamic impulse damageInterchangeable with Snap-Tite 71 Series
