Dixon® T3F3-PV T3F3-PV

Dixon® T3F3-PV

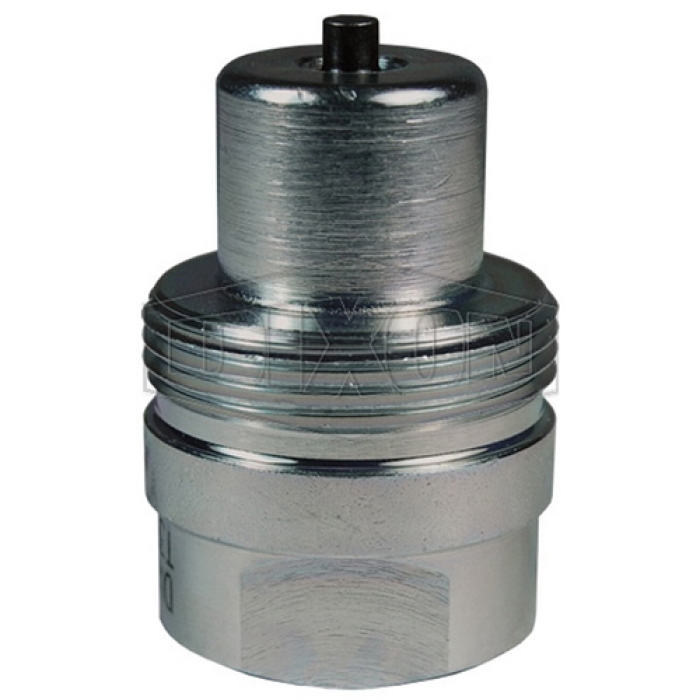

Dixon® T Series Trivalent Chrome-Plated Steel High-Pressure Poppet Plug, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: T3F3-PV
  • MPN: T3F3-PV
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® High-Pressure Poppet Plug, Series: T, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 15/16 in, 10000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.19 in OD x 1.53 in L, -40 to 250 deg F, For Use With: T-Series Quick Disconnect Hydraulic Coupling

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.19 in OD x 1.53 in L
Finish      :      Trivalent Chrome-Plated
For Use With      :      T-Series Quick Disconnect Hydraulic Coupling
Gender 2      :      Female
Hex Size      :      15/16 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      10000 psi
Series      :      T
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      3/8-18
Steel nipples are machined using solid high-strength steel bar stockChrome steel ball valve is mechanically seated to improve low pressure sealing performanceSteel componentry is plated using RoHS compliant trivalent chromePolyurethane sealsHigh pressure screw together interchangeParker 3000 SeriesEnerpac C604Interchangeable to ISO 14540Applications: For high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10000 psi are encountered
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2TDP_CAT.pdf
