Dixon® 4VM4-SS 4VM4-SS

Dixon® 4VM4-SS

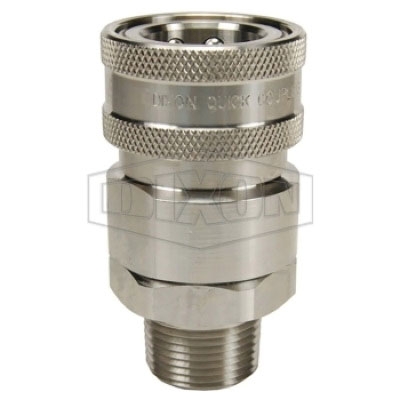

Dixon® V Series 316 Stainless Steel Snap-Tite H/IH Interchange Valved Coupler, 1/2 in Quick Disconnect x 1/2 in MNPTF

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 4VM4-SS
  • MPN: 4VM4-SS
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Snap-Tite H/IH Interchange Valved Coupler, Series: V, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-3/16 in, 3750 psi, Material Construction: 316 Stainless Steel, Dimensions: 1.36 in OD x 2.54 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.36 in OD x 2.54 in L
Gender 2      :      Male
Hex Size      :      1-3/16 in
Industry Category      :      Hydrulic Quick Disconnects
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      3750 psi
Series      :      V
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/2-14
General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliabilityMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeNitrile (Buna-N) seals are standardAll couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damageValve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connectionInterchangeable to MIL-C-51234
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2VF2SSE_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4VM4SS_SS.pdf
