Dixon® VEP3OF4 VEP3OF4

Dixon® VEP3OF4

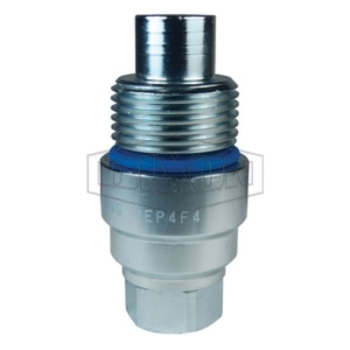

Dixon® VEP Zinc/Nickel-Plated Steel Plug, 3/8 in Quick Disconnect x 1/2 in Female ORB

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: VEP3OF4
  • MPN: VEP3OF4
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Plug, Series: VEP, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 25 mm, 5500 psi, Material Construction: Steel, Finish: Zinc/Nickel-Plated, Dimensions: 1.48 in OD x 3.5 in L

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      ORB
Dimensions      :      1.48 in OD x 3.5 in L
Finish      :      Zinc/Nickel-Plated
Gender 2      :      Female
Hex Size      :      25 mm
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5500 psi
Series      :      VEP
Shape      :      Plug
Thread Size 2      :      3/4-16
DORS Retention System optimizes flow and impulse pressure performanceThread-to-connect design and dual valve system in the plug allow for connecting under pressureThreaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high-impulse pressuresMachined components are manufactured using solid steel bar stockStainless steel retaining rings and springs maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistanceValve stems have molded polyurethane seals, with a temperature range of -65 to 212 deg FAncillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg FTPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damageInterchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET Series and Holmbury HFT Series
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_VEP3OF4_SS.pdf
