Dixon® 10WSOF10 10WSOF10

Dixon® 10WSOF10

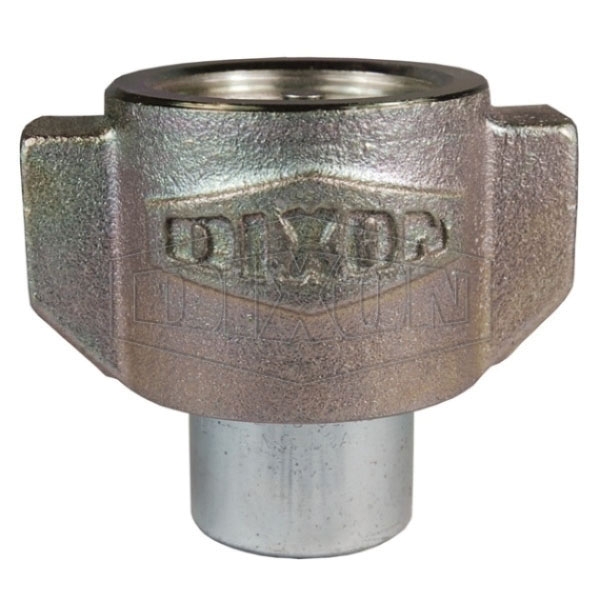

Dixon® WS Series Zinc/Nickel-Plated Steel High-Pressure Wingstyle Coupler, 1-1/4 in Quick Disconnect x 1-1/4 in Female ORB

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: 10WSOF10
  • MPN: 10WSOF10
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® High-Pressure Wingstyle Coupler, Series: WS, Connection Type 1: Quick Disconnect, Connection Size 1: 1-1/4 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 1-1/4 in, Thread Size 2: 1-5/8-12, 5000 psi, Material Construction: Steel, Finish: Zinc/Nickel-Plated, Dimensions: 4.65 in OD x 4.4 in L, -40 to 250 deg F, For Use With: Snap-Tite 75 series, Hydraulics series 5TV, DNP VFF-HD, Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC Couplings

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      ORB
Dimensions      :      4.65 in OD x 4.4 in L
Finish      :      Zinc/Nickel-Plated
For Use With      :      Snap-Tite 75 series, Hydraulics series 5TV, DNP VFF-HD, Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC Couplings
Gender 2      :      Female
Industry Category      :      Hydrulic Quick Disconnects
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5000 psi
Series      :      WS
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1-5/8-12
Machined components are manufactured using solid steel bar stockStainless steel retaining ring and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistanceNitrile (Buna-N) seals are standard, providing a temperature range of -40 to 250 deg FPTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damageMain valve seal is 'housed' to improve seal integrity during pressurized connection/disconnectionApplications: For oil field and offshore oil rig applications
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSOF10_SS.pdf
