DNP Americas 600SF-FJX-20-20 600SF-FJX-20-20

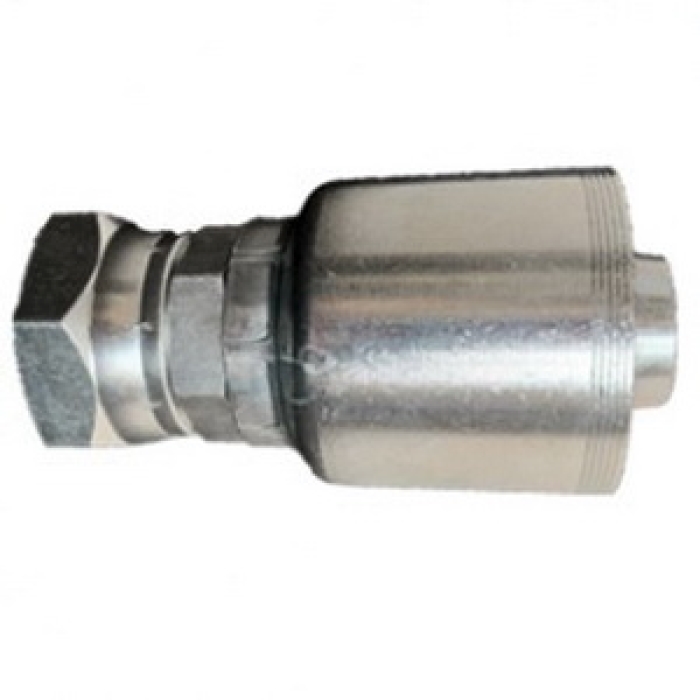

DNP Americas 600SF Female 37 deg JIC Swivel 1-Piece Spiral Fit Crimp Straight Hose Fitting

DNP Americas 600SF 1-Piece Spiral Fit Crimp Straight Hose Fitting, Hose X 37 deg JIC Swivel

  • Add to cart
    Add To Favorites
    • pin-int

    DNP Americas 1-Piece Spiral Fit Crimp Straight Hose Fitting, Series: 600SF, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1-1/4 in, Nominal Size: 1-1/4 in, Thread Size 2: 1-5/8-12, For Use With: 4SH, Freedom, R13 and R15 Hoses, 4 and 6 Spiral Hoses, Dimensions: 4.23 in L

    Connection Size 1      :      1-1/4 in
    Connection Size 2      :      1-1/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      37 deg JIC Swivel
    Dimensions      :      4.23 in L
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      4SH, Freedom, R13 and R15 Hoses, 4 and 6 Spiral Hoses
    Gender 2      :      Female
    Hose Dash Size      :      20
    Nominal Size      :      1-1/4 in
    Series      :      600SF
    Shape      :      Straight
    Thread Size 2      :      1-5/8-12
    • 600SF Series fittings have a strong structure designed for extreme pressures and spikes, high impulses and vibration
    • They also have extraordinary resistance to fatigue
    • The universal ferrule can be used either with 4 or 6-spiral hoses
    • These extreme-duty fittings are used for industrial and mobile hydraulics
    • They are ideal for construction, mining, petroleum and earthmoving equipment
    • 600SF Series fittings can be identified by the S located on the ferrule
    • When making hose assemblies using 600SF Series fittings, make sure that the hose you are using is designed to work with the 600SF Series hose fittings

    Applications: For construction, mining, petroleum and earthmoving equipment

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/DNP Americas_200-FJX-06-06-1P_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/DNP Americas_600SF-CD62-20-24_SS.pdf
